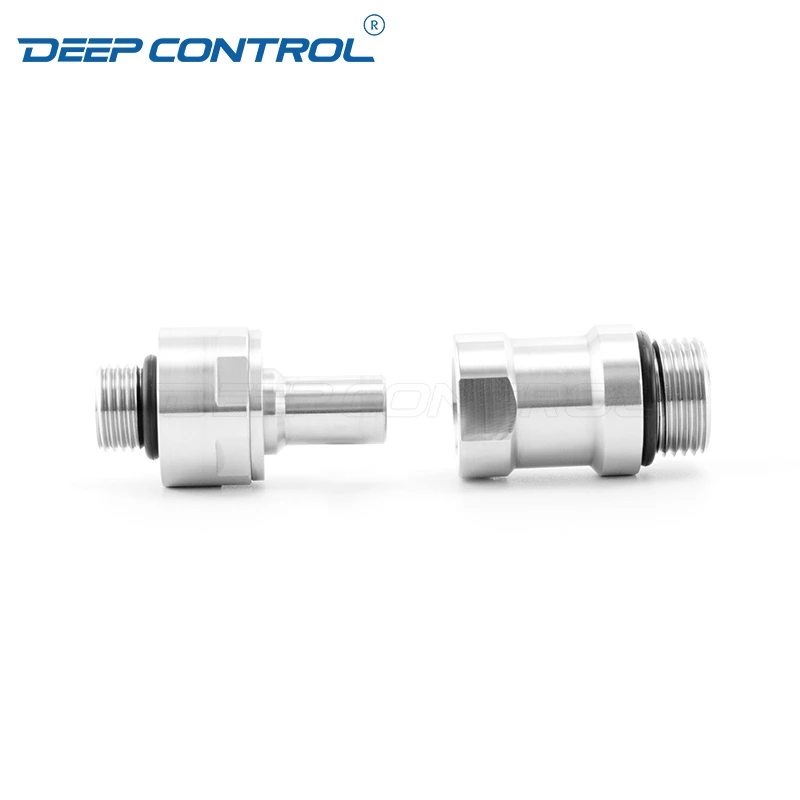

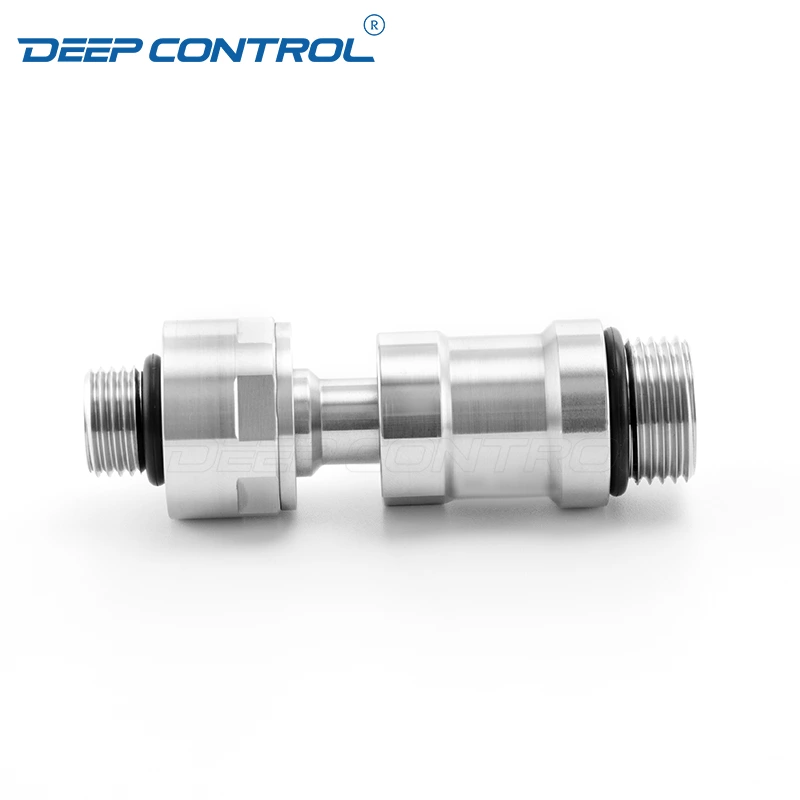

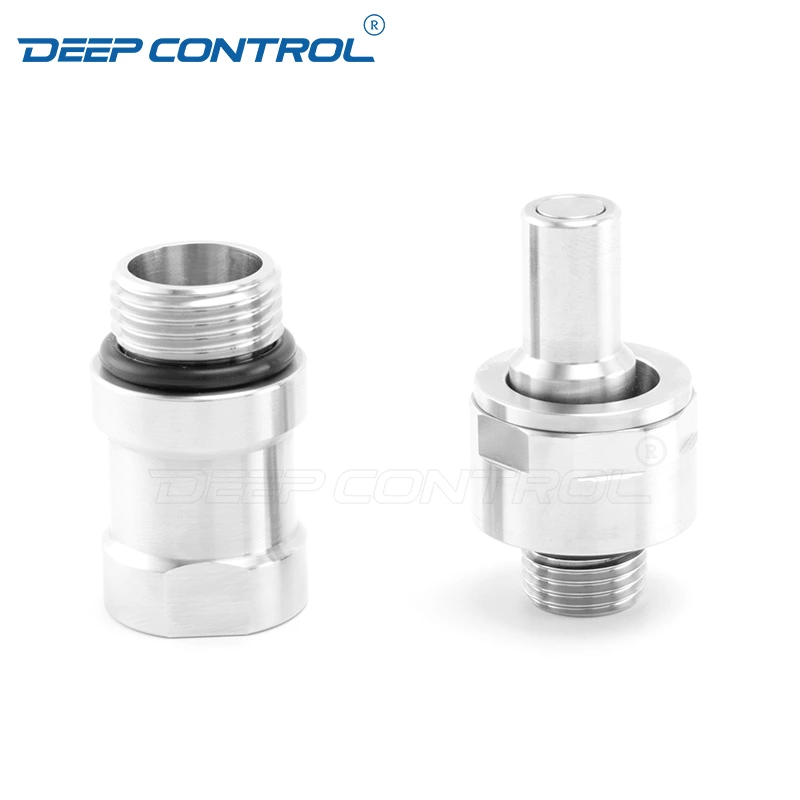

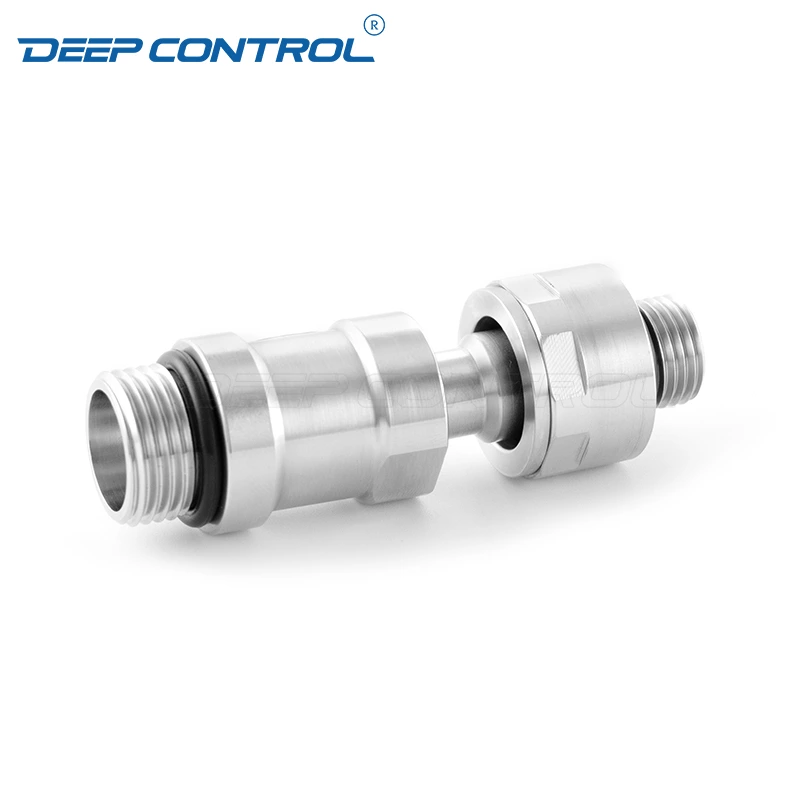

Data Center Liquid Cooling Water SS304 SS316L Universal Quick Disconnect Blind-Mate UQDB Coupling
Data Center Liquid Cooling Water SS304 SS316L Universal Quick Disconnect Blind-Mate UQDB Coupling
Liquid cooling quick connectors are widely used in liquid cooling systems. They are primarily used to quickly connect and disconnect the fluid flow path within the cooling system. They typically consist of two main components: a plug(Nipple) and a socket(coupling).
Their working principle relies primarily on internal valves and sealing structures. When the plug is inserted into the socket, the valve opens, allowing the cooling fluid to flow; when the plug is removed, the valve automatically closes, preventing leakage. Furthermore, a sealing ring seals the plug and socket, ensuring a tight seal at the connection.
Specification:
- Designed to OCP and UQD Standard
- Easy one-hand push-to-connect;
- High flow rate, no spillage;
- Two-way shutoff;
- Optimized connection force
Standard material: Stainless steel for broad fluid compatibility.
Standard seal material: EPDM.
Female connector sleeve and male connector O-ring color coding (red/blue).
Various port connection options: Male connector ends with ORB and BSPP threads; female connector ends with a barb-style end, with other configurations available upon request.
Operating temperature: -40°C to +150°C.
Standard operating pressure: 6.9 bar, with smaller sizes offering up to 20 bar.
