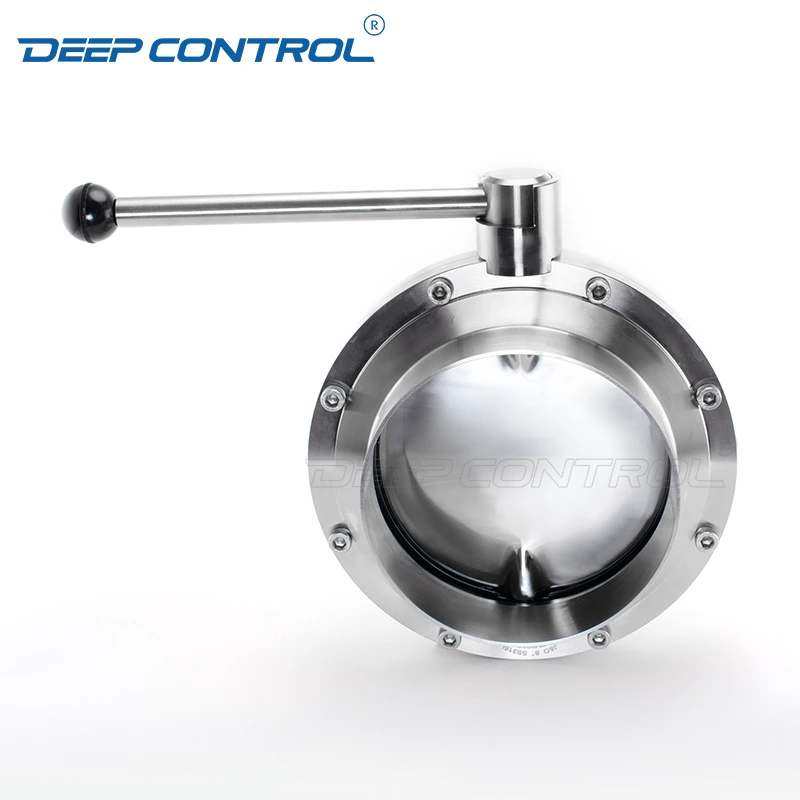

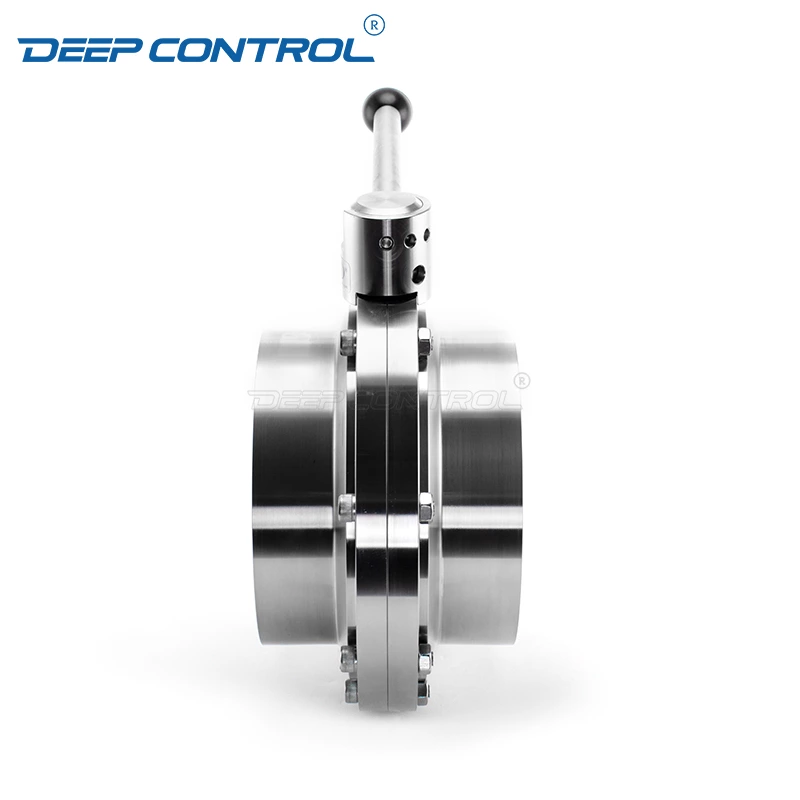

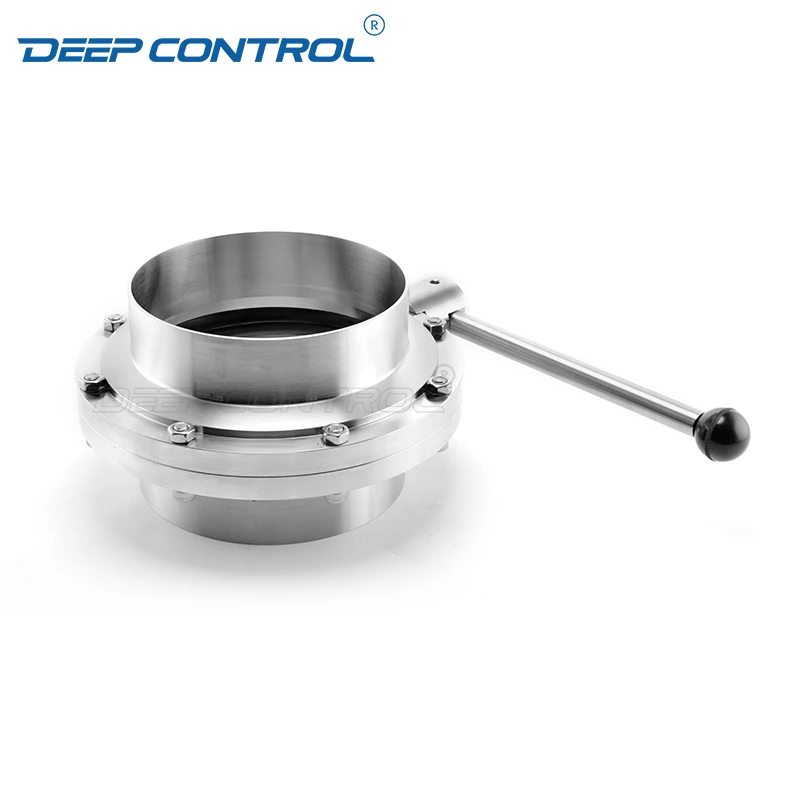

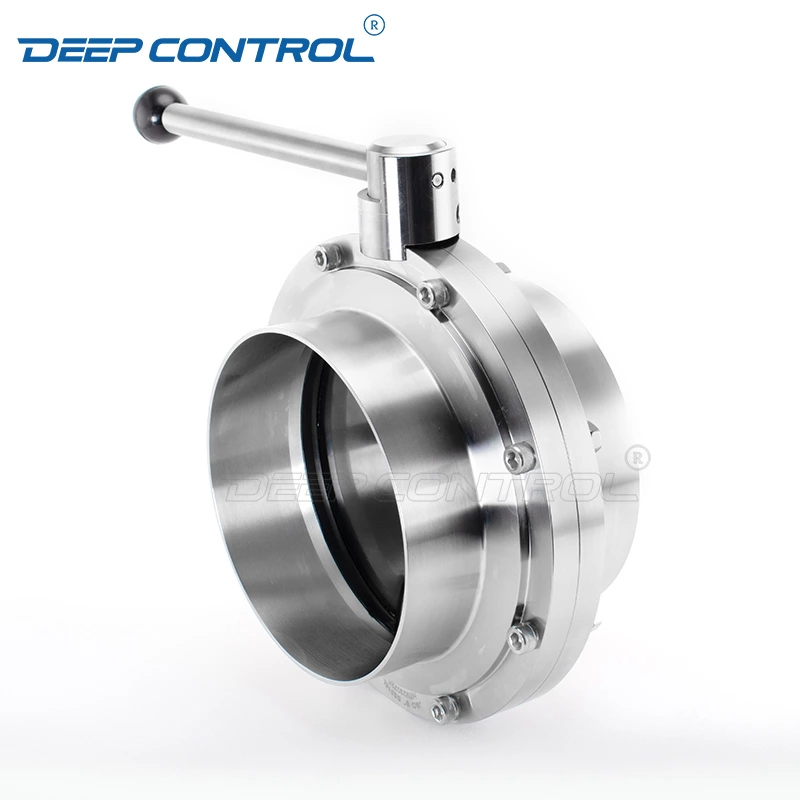

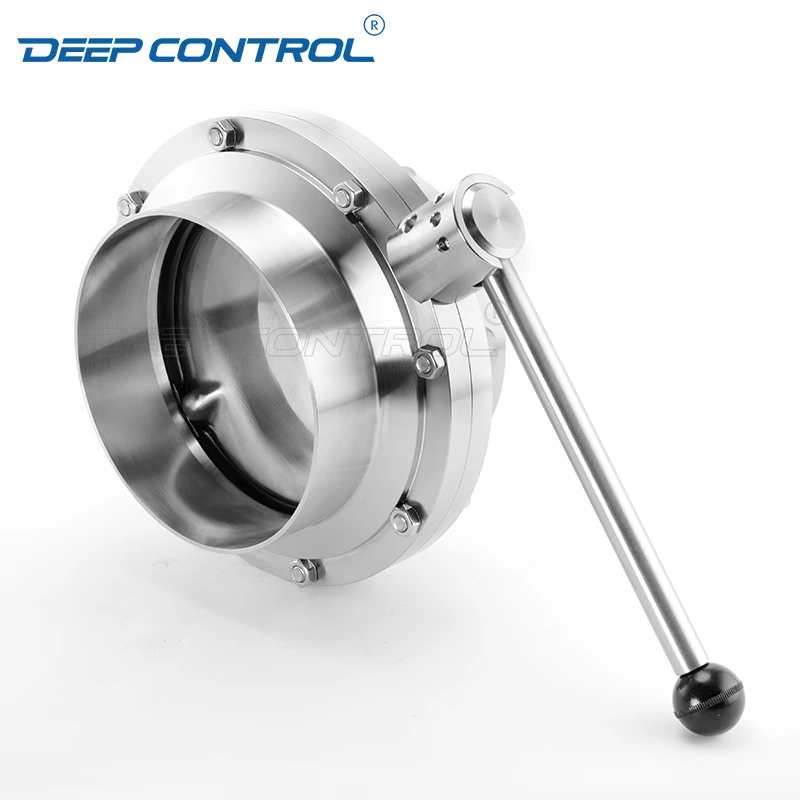

Data Center Liquid Cooling Water CDU 8 INCH Hygienic Stainless Steel Pull Handle Butterfly Valve
Data Center Liquid Cooling Water CDU 8 INCH Hygienic Stainless Steel Pull Handle Butterfly Valve
- Our Data Center Liquid Cooling Water Hygienic Butterfly valve body could be offered with Weld end, Male end, female end, and Clamp end. Our butterfly valves can be installing with different type handles like 4 position pull handle, 12 position gripper handle and 10 more other types or installing with actuator for automatically control for your widely using.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as Data Certer cooling, Energy storage cooling, Liquid Cooling, food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Data Center Liquid Cooling Water CDU 8 INCH Hygienic Stainless Steel Pull Handle Butterfly Valve |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | -40 Degree to 120 degree C |
| Availably size: | 1"-10", DN25-DN250 |
| Availably connection: | Butt- weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel pull handle |
| Application scope: | Data Certer cooling, Energy Storage Cooling, Liquid Cooling, Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

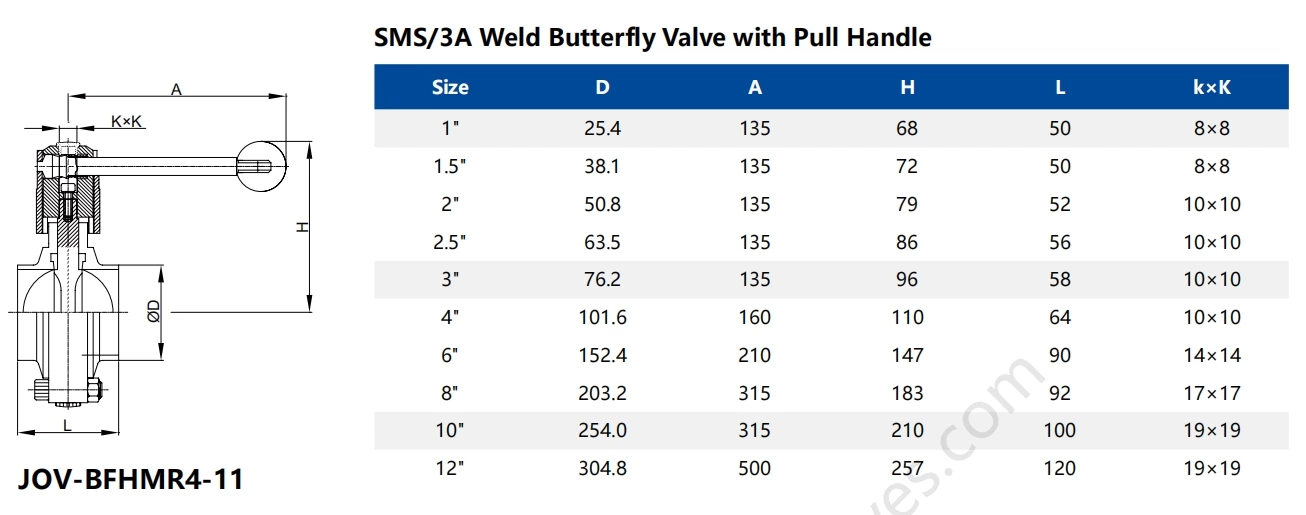

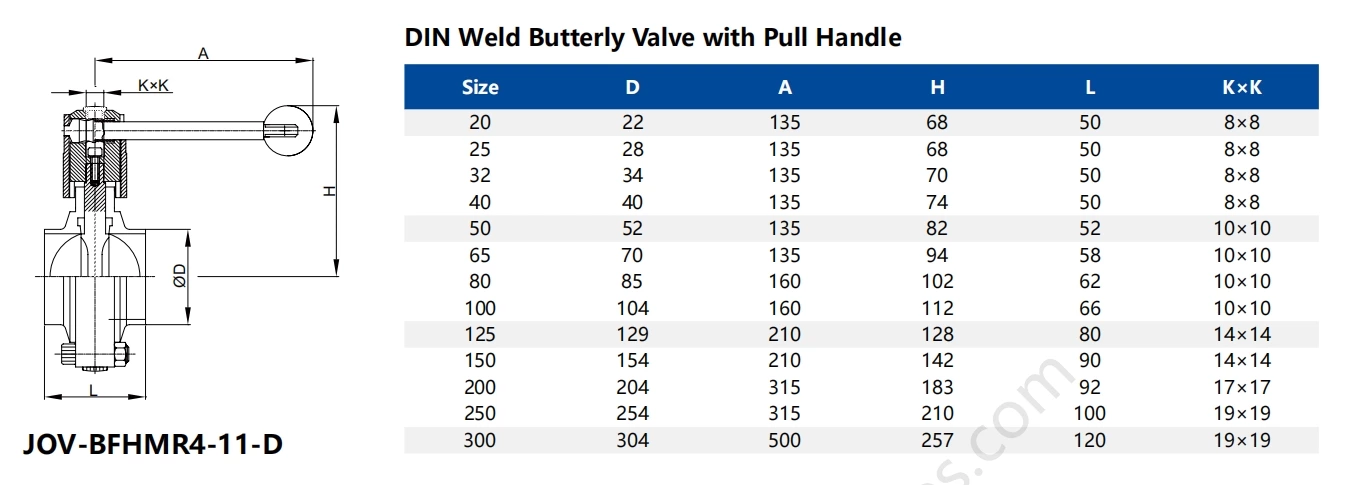

Product Parameter
