Liquid Water Cooling Data Center Hygienic Stainless Steel No Return Tri-Clamp Check Valve
- Place of Origin:
- China
- Packing:
- Carton Case, wooden Case
- Quantity:
- 100PCS
- Payment:
- T/T, L/C
- Medium:
- Liquid Cooling Water
- Material:
- SS304, SS316L
- Connection:
- Tri-Clamp
- Specification:
- 1"-4"
- Standard or Nonstandard:
- 3A, DIN
- Pressure:
- 10Bar
- Temperature:
- -40 Degree to 120 Degree

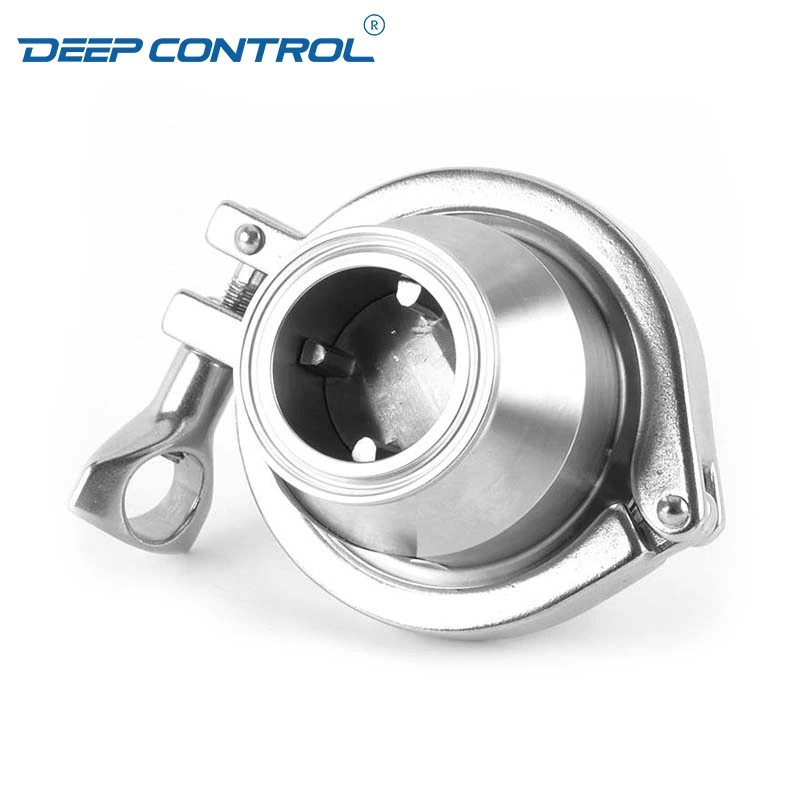

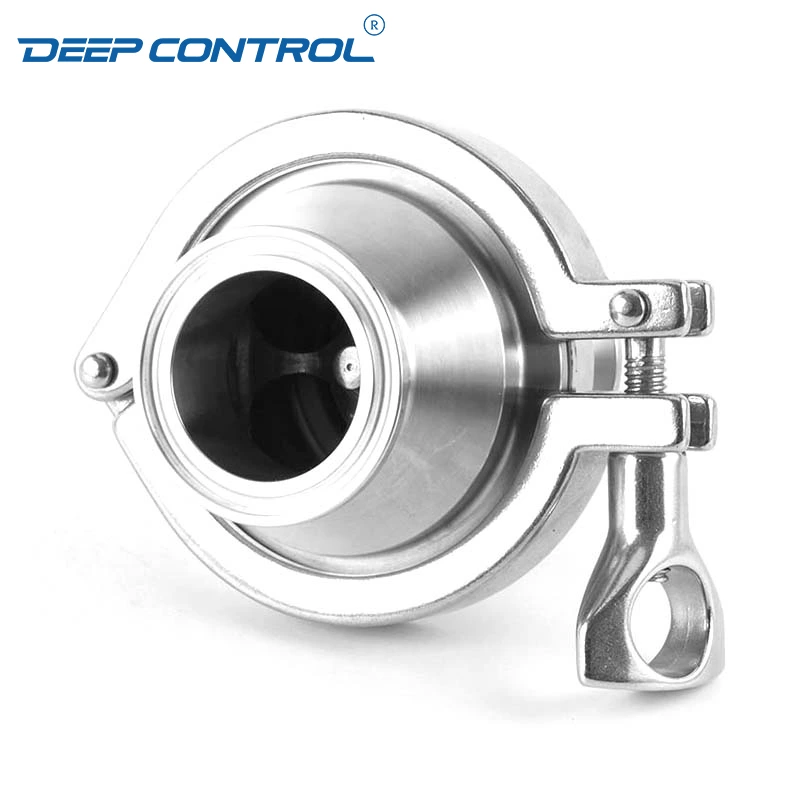

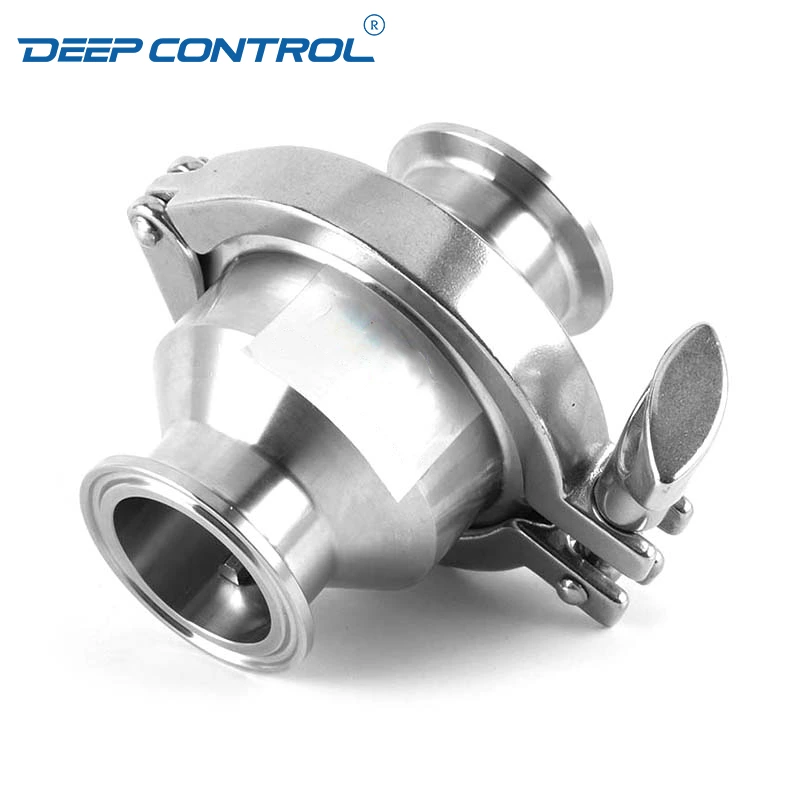

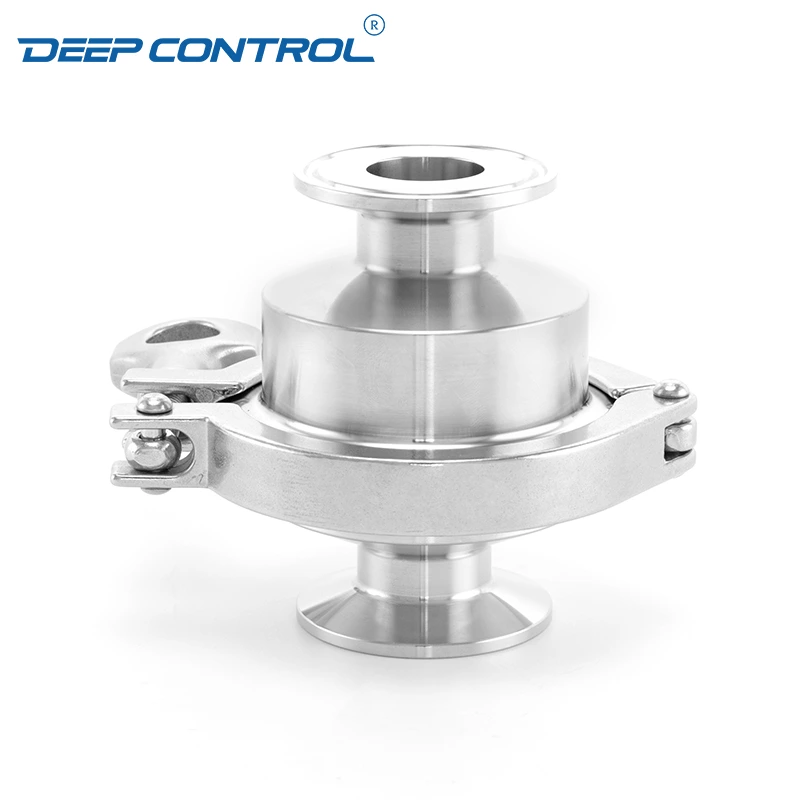

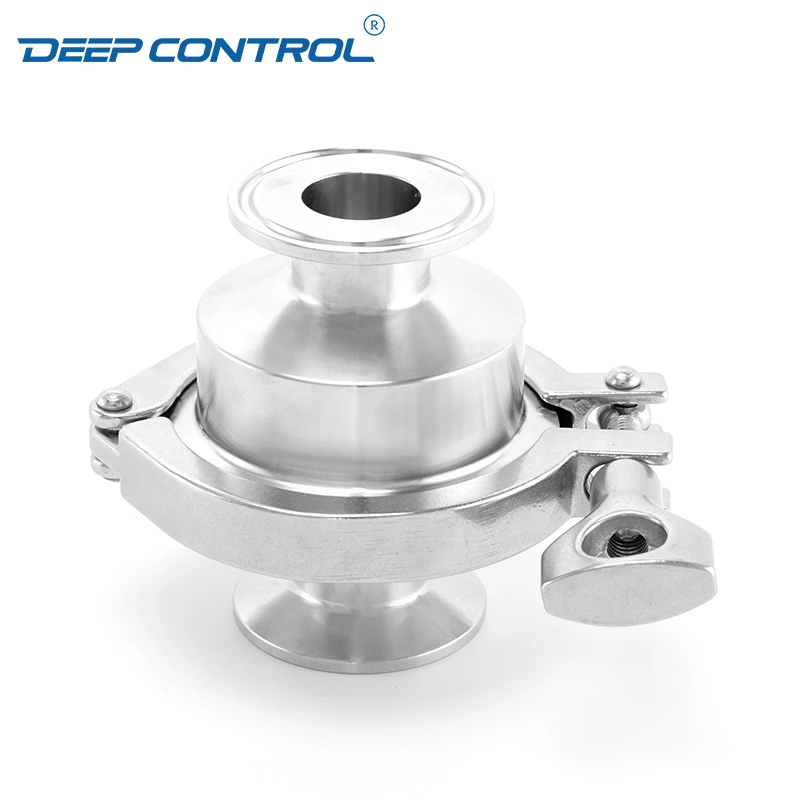

Liquid Water Cooling Data Center Hygienic Stainless Steel No Return Tri-Clamp Check Valve
- We can supply Liquid Water Cooling Data Center Hygienic Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
- Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
- It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
- It is used in the Liquid Cooling Water System, Data Center, Energy Storage, food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
- The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring.
- When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.
Product Description

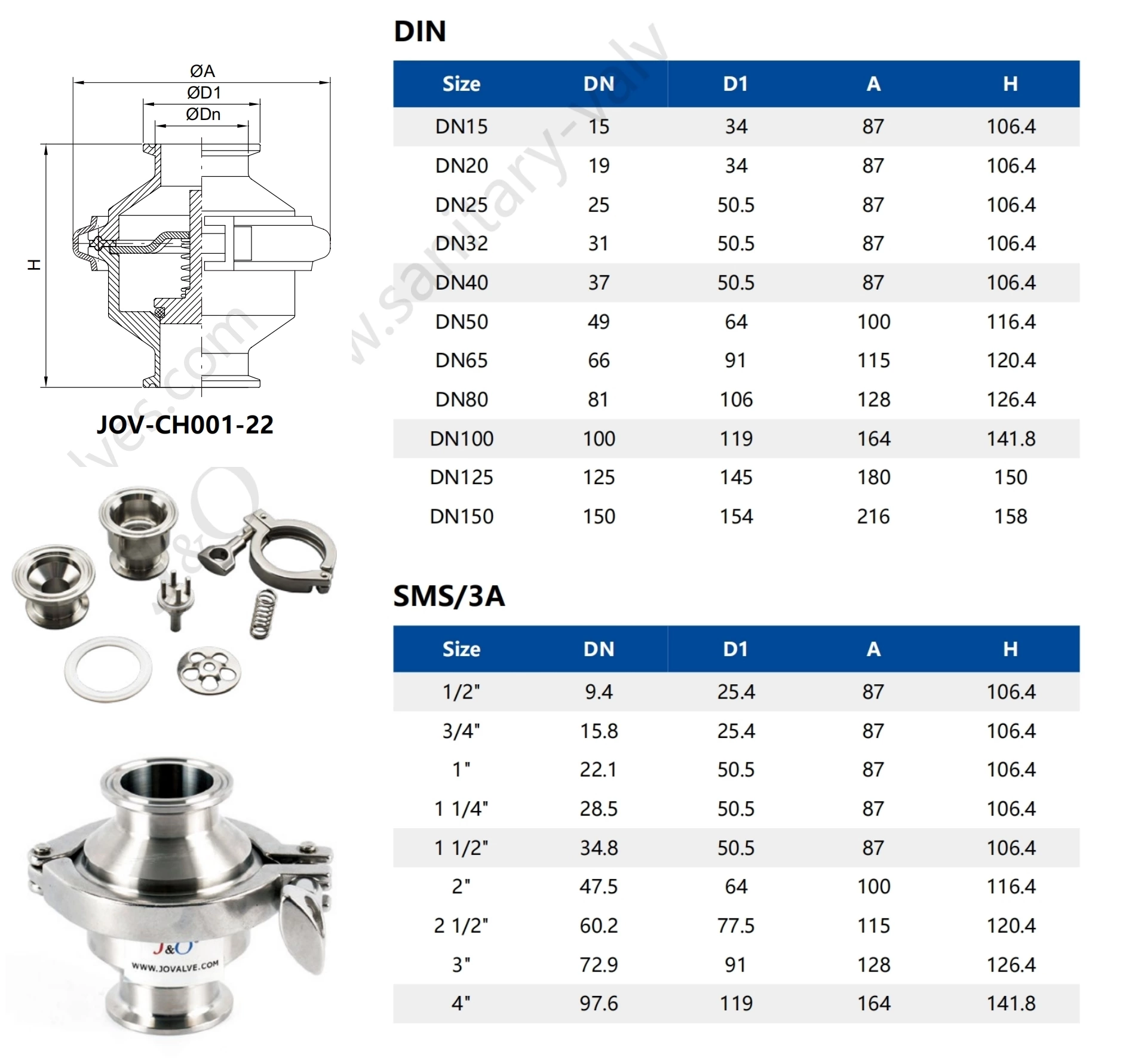

| Product Name: | Liquid Water Cooling Data Center Hygienic Stainless Steel No Return Tri-Clamp Check Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 19mm - 200mm or DN15-DN100 |
| Connection Way: | Clamp |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -40 degree to +120 degree (EPDM) |
| Opening Pressure: | 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100) |
| Packing Details: | within carton box or plywood case |
| Applied Industries: | Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |
