Hygienic Direct to Chip Liquid Cooling Stainless Steel Butt Weld Welding Check Valve With High Pressure Clamp
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 100000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304/SS316L
- Connection:
- Welding
- Specification:
- 1"-4"
- Gasket:
- EPDM/SILICON/NBR
Hygienic Direct to Chip Liquid Cooling Stainless Steel Butt Weld Welding Check Valve With High Pressure Clamp
- Our Sanitary Direct to Chip Liquid Cooling Check Valve including Sanitary Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
- Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
- It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
- It is used in the Data Center cooling, Energy Storage Cooling, Liquid Cooling, food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
- The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring.
- When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.
Product Description
| Product Name: | Hygienic Direct to Chip Liquid Cooling Stainless Steel Butt Weld Welding Check Valve With High Pressure Clamp |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 19mm - 200mm or DN15-DN100 |
| Connection Way: | Weld |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Opening Pressure: | 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100) |
| Packing Details: | within carton box or plywood case |
| Applied Industries: | Data Center cooling, Energy Storage Cooling, Liquid Cooling, Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |

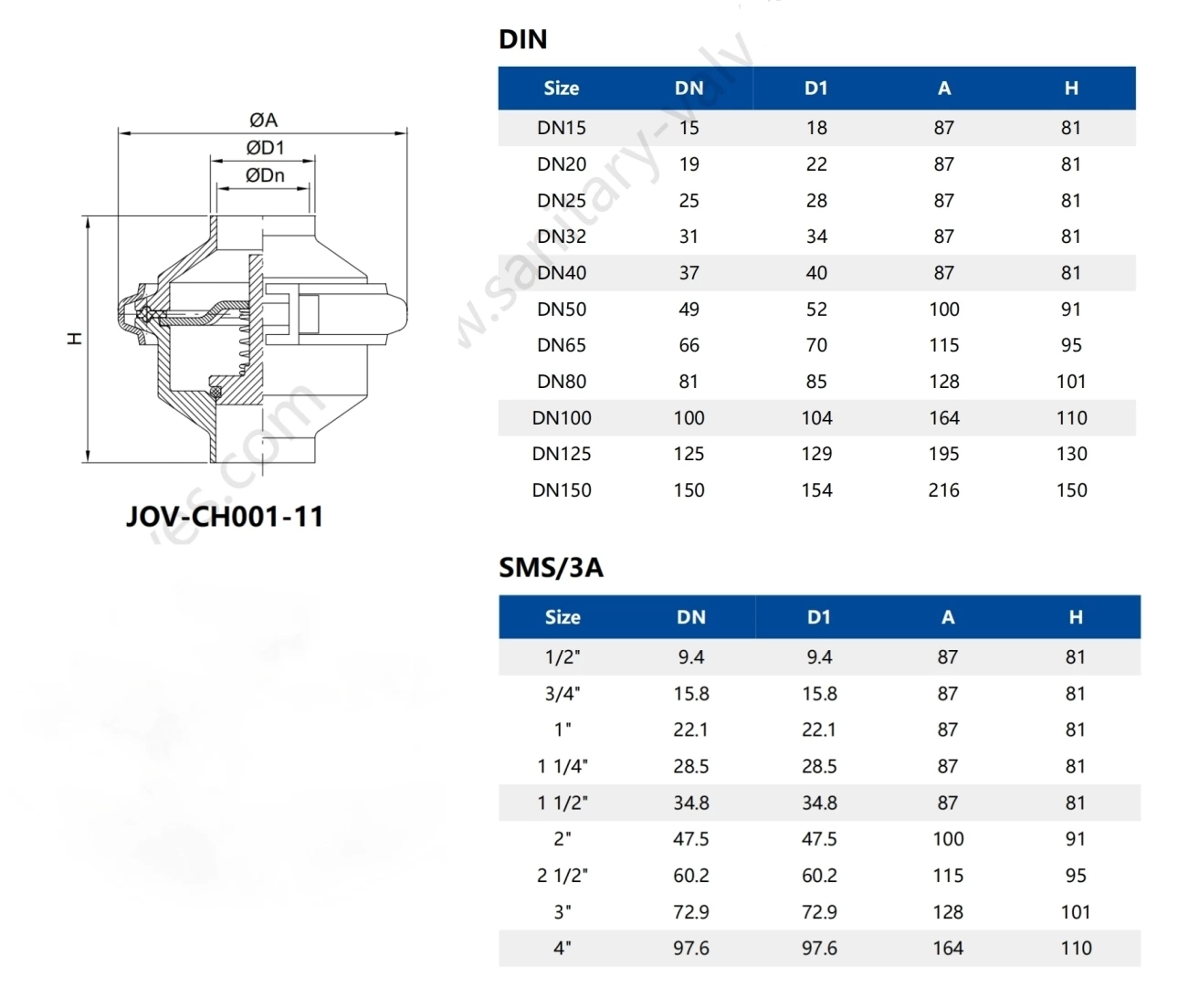

Product Parameter
