Data Center Cooling Water Leak Free Sanitary Stainless Steel Butterfly Valve With Gripper Handle
- Place of Origin:
- Wenzhou China
- Packing:
- Suitable Packing For Sea/Air Transport
- Quantity:
- 1000000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304/SS316L
- Connection:
- Welding,Thread,Clamped
- Specification:
- 1"-4"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Gasket:
- EPDM/SILICON/NBR
Data Center Cooling Water Leak Free Sanitary Stainless Steel Butterfly Valve With Gripper Handle

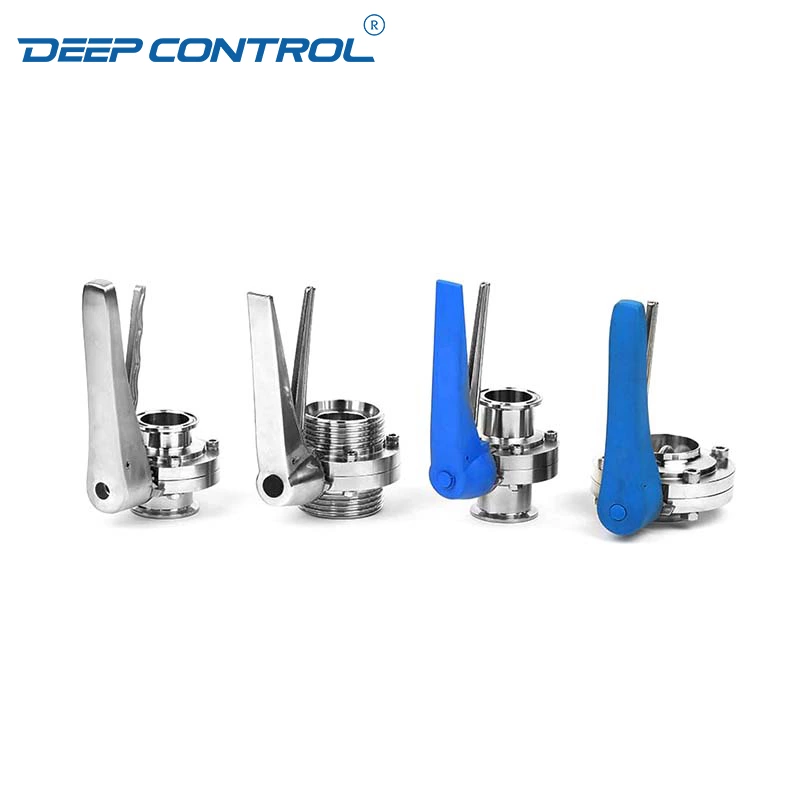

- Our Manual Data Center Cooling Water Leak Free Sanitary Butterfly Valve including Sanitary Welding Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve. For the handle, we have Stainless Steel Pull Handle, Plastic Gripper Handle and Stainless Steel Gripper Handle.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as Data Certer cooling, Energy storage cooling, Liquid Cooling, food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Data Center Cooling Water Leak Free Sanitary Stainless Steel Butterfly Valve With Gripper Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | -40 Degree to 120 degree C |
| Availably size: | DN25-DN250, 1"-10" |
| Availably connection: | weld,thread,clamp |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | stainless steel pull handle |
| Application scope: | Data Certer cooling, Energy storage cooling, Liquid Cooling, Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

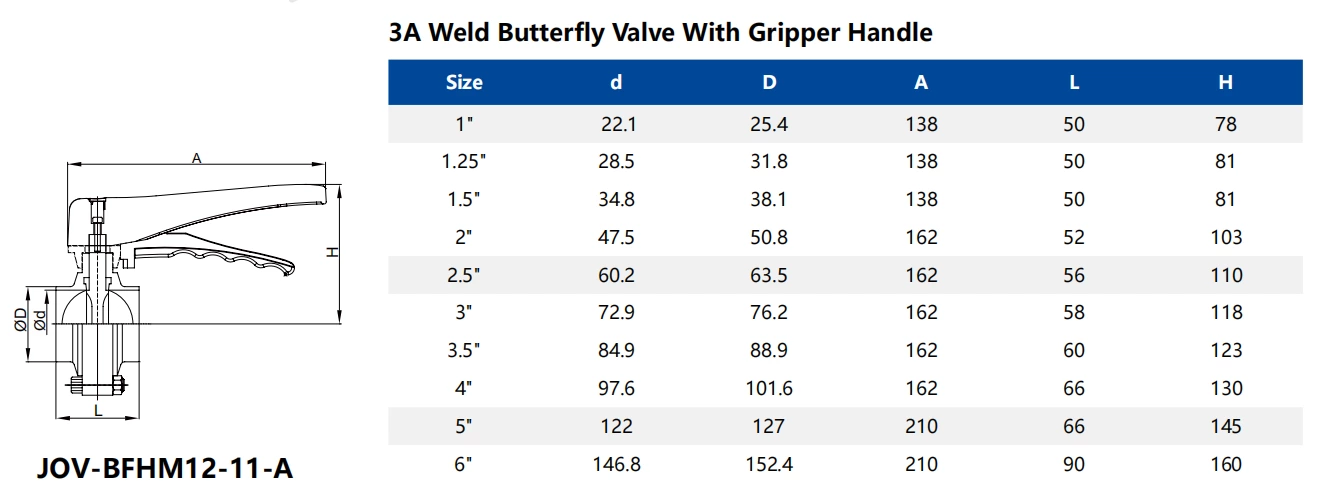

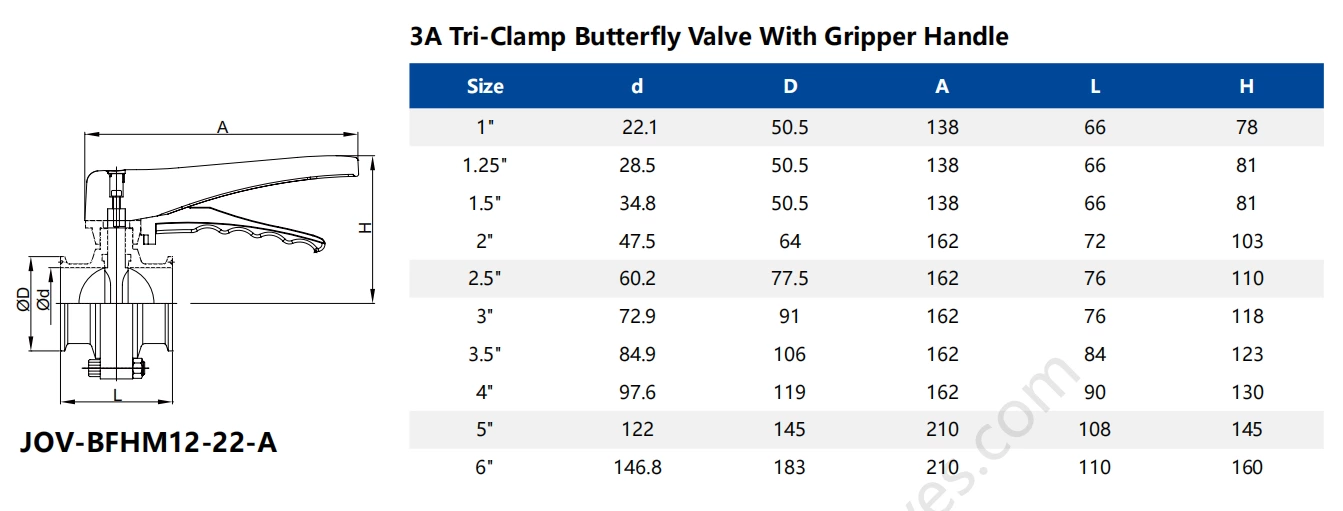

Product Parameter

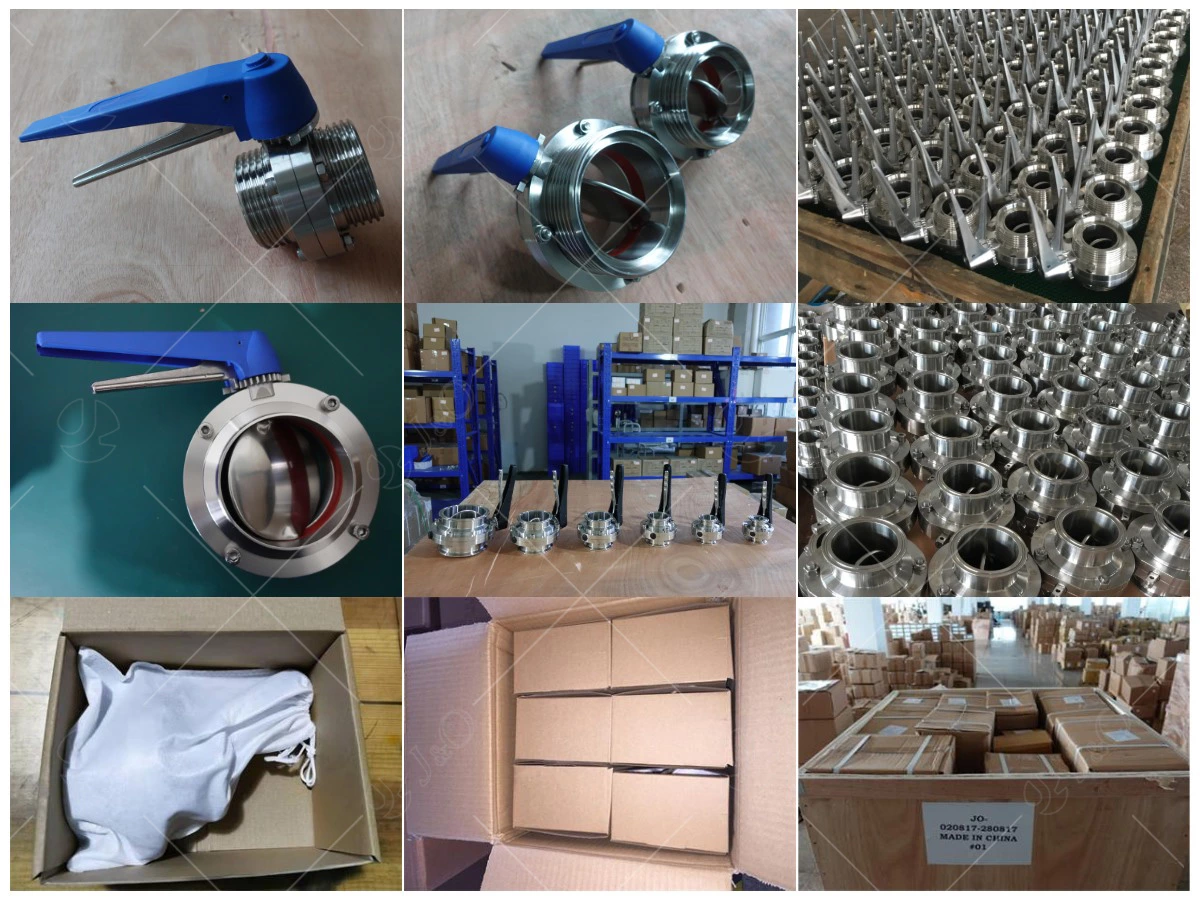

Product Picture
