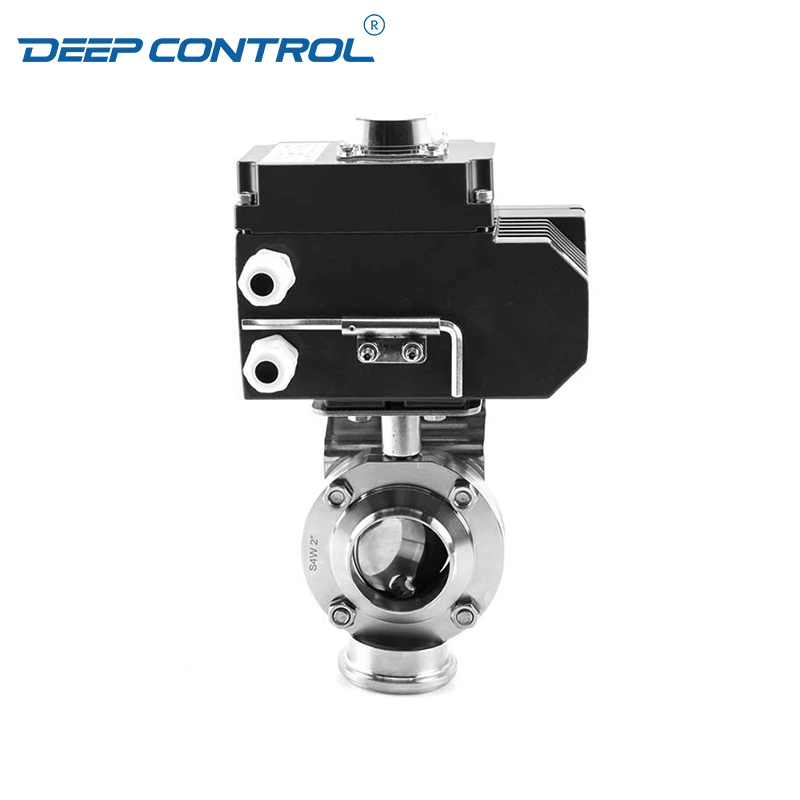

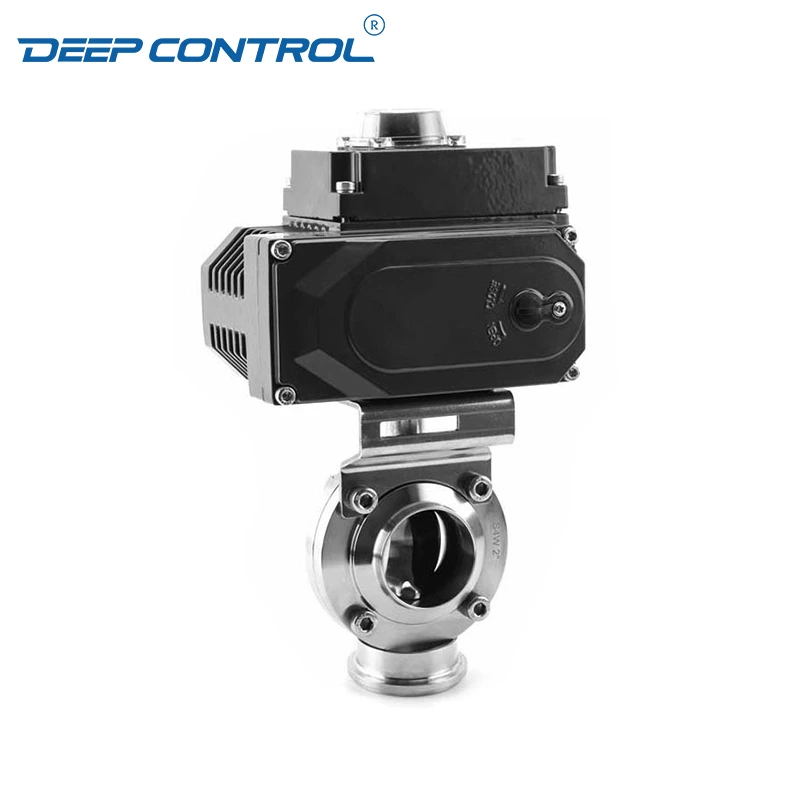

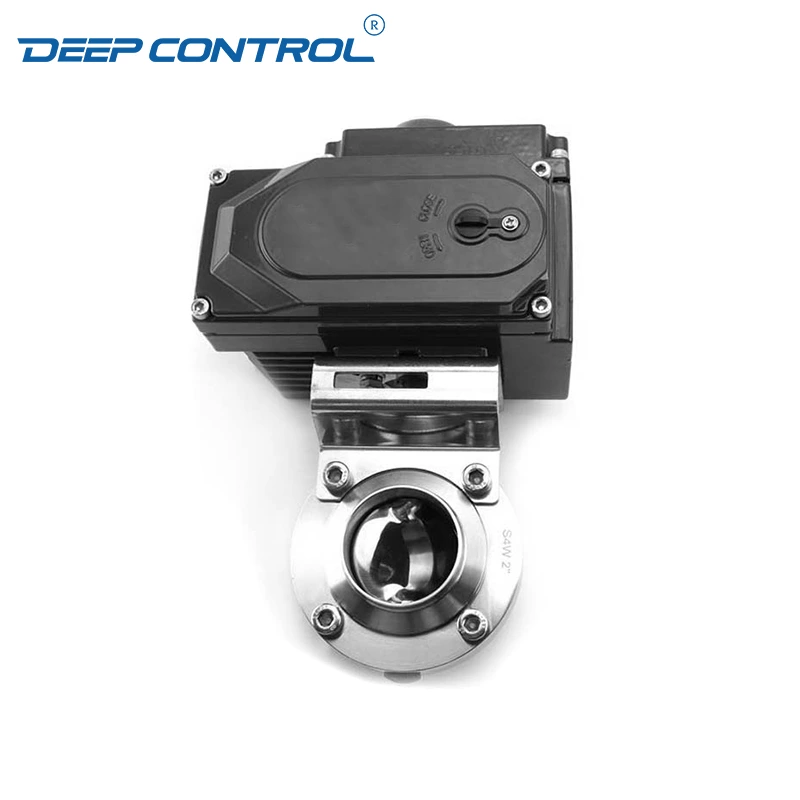

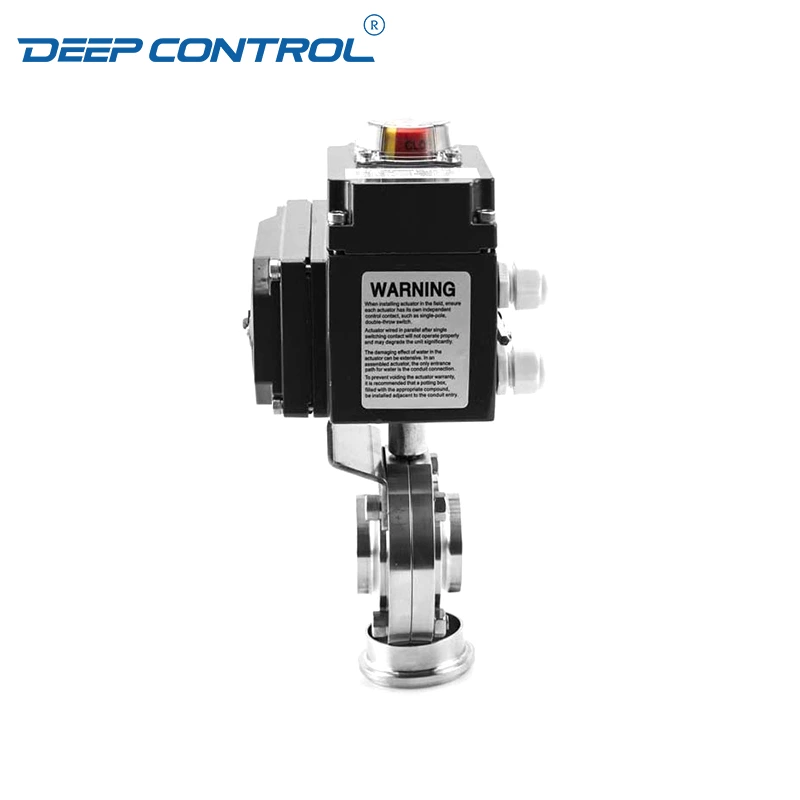

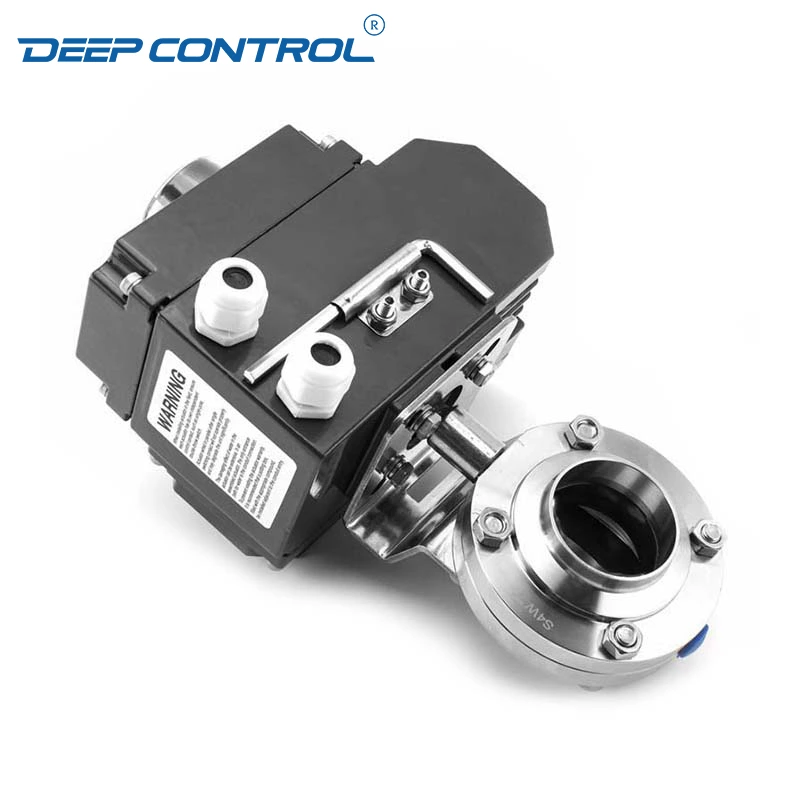

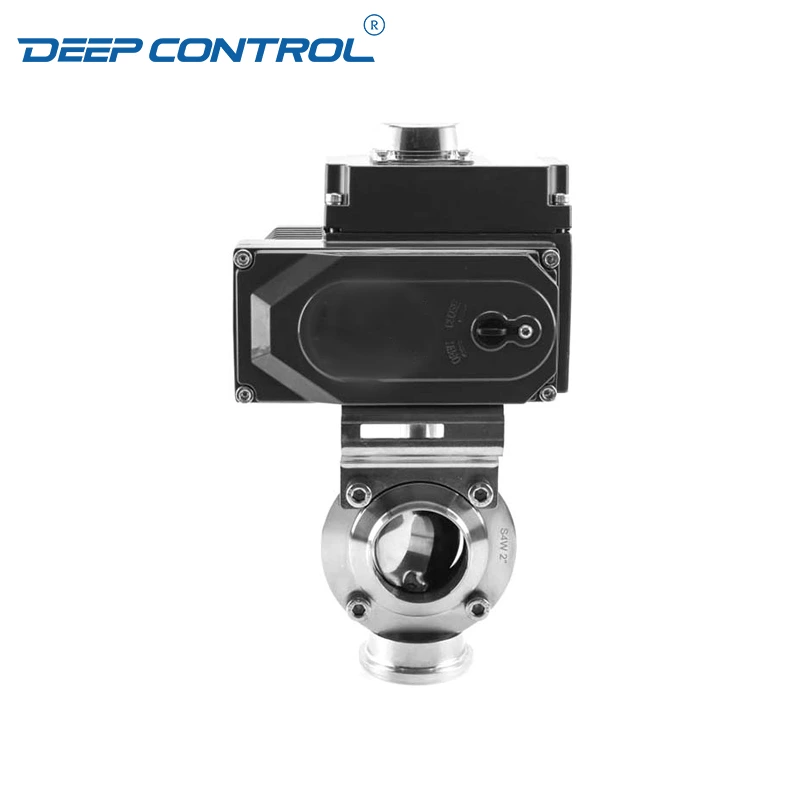

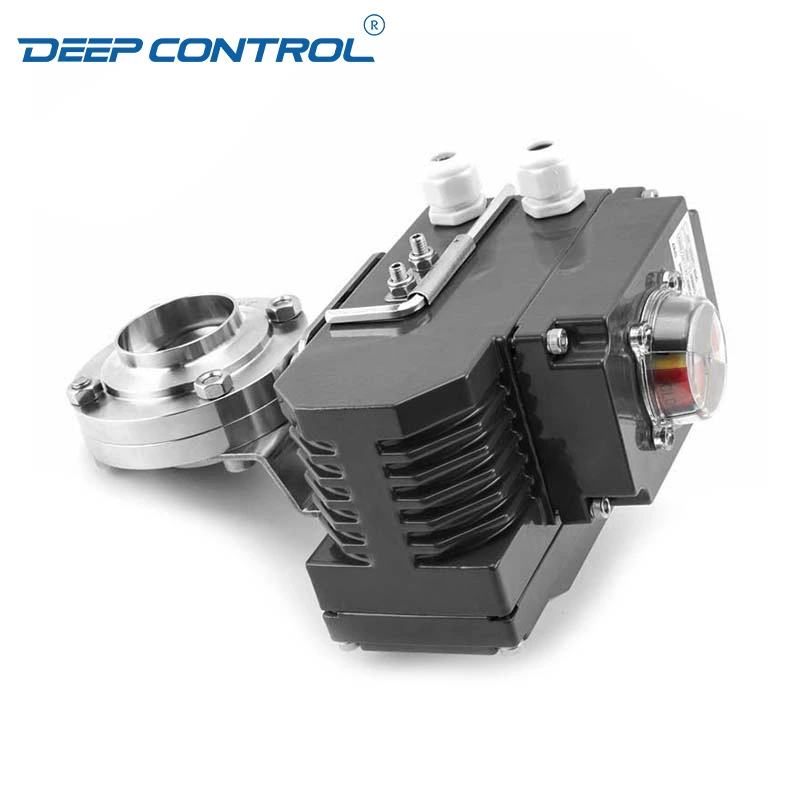

Data Center Chiller Prevent Leaks Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator
- Place of Origin:
- Wenzhou China
- Packing:
- Suitable Packing For Sea/Air Transport
- Quantity:
- 10000 PCS Per Year
- Payment:
- T/T, L/C, Paypal, Alipay
- Medium:
- Cooling Water
- Material:
- SS304/SS316L
- Connection:
- Clamped, Welding, Thread
- Specification:
- DN25-DN250, 1"-10"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Gasket:
- EPDM/SILICON/NBR
- Type:
- Electric
Data Center Chiller Prevent Leaks Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator
- We manufacture Data Center Chiller Prevent Leaks Electrical Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Electric Butterfly Valve, Hygienic Male Thread Electric Butterfly Valve.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as Data Certer cooling, Energy Storage Cooling, Liquid Cooling, food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Data Center Chiller Prevent Leaks Sanitary Stainless Steel Welding Butterfly Valve With Electric Actuator |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Mex working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | DN25-DN250, 1"-10" |
| Availably connection: | Clamp/Thread/Weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Electric |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Motor power: | 110/220V AC single-phase, 380/440 3-phase, 50/60hz |

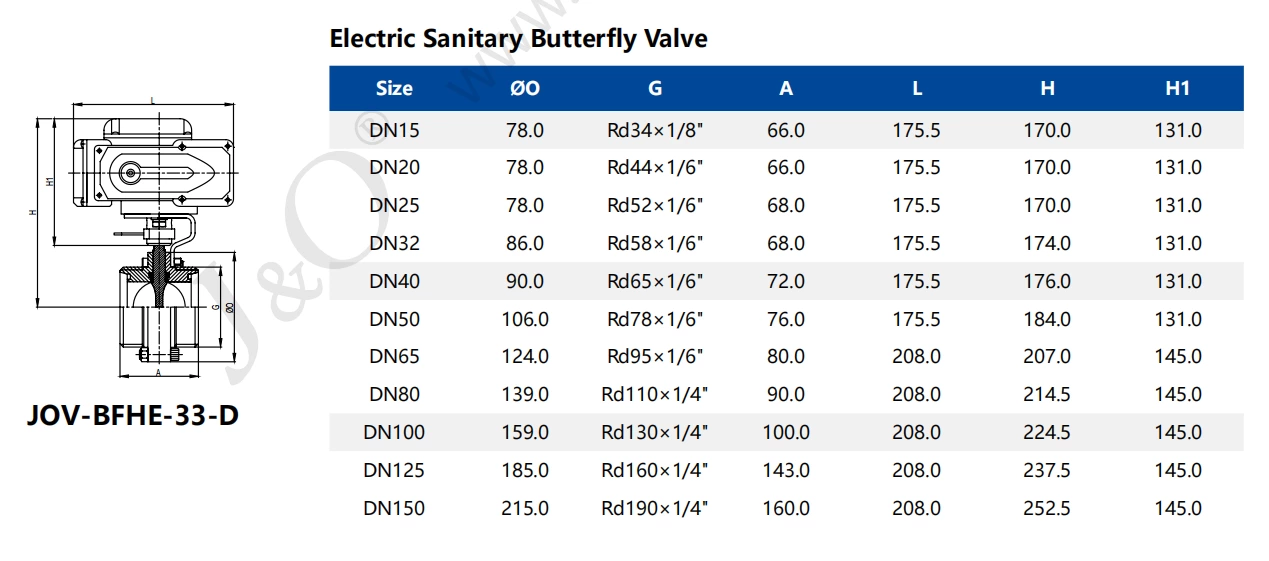

Product Parameter

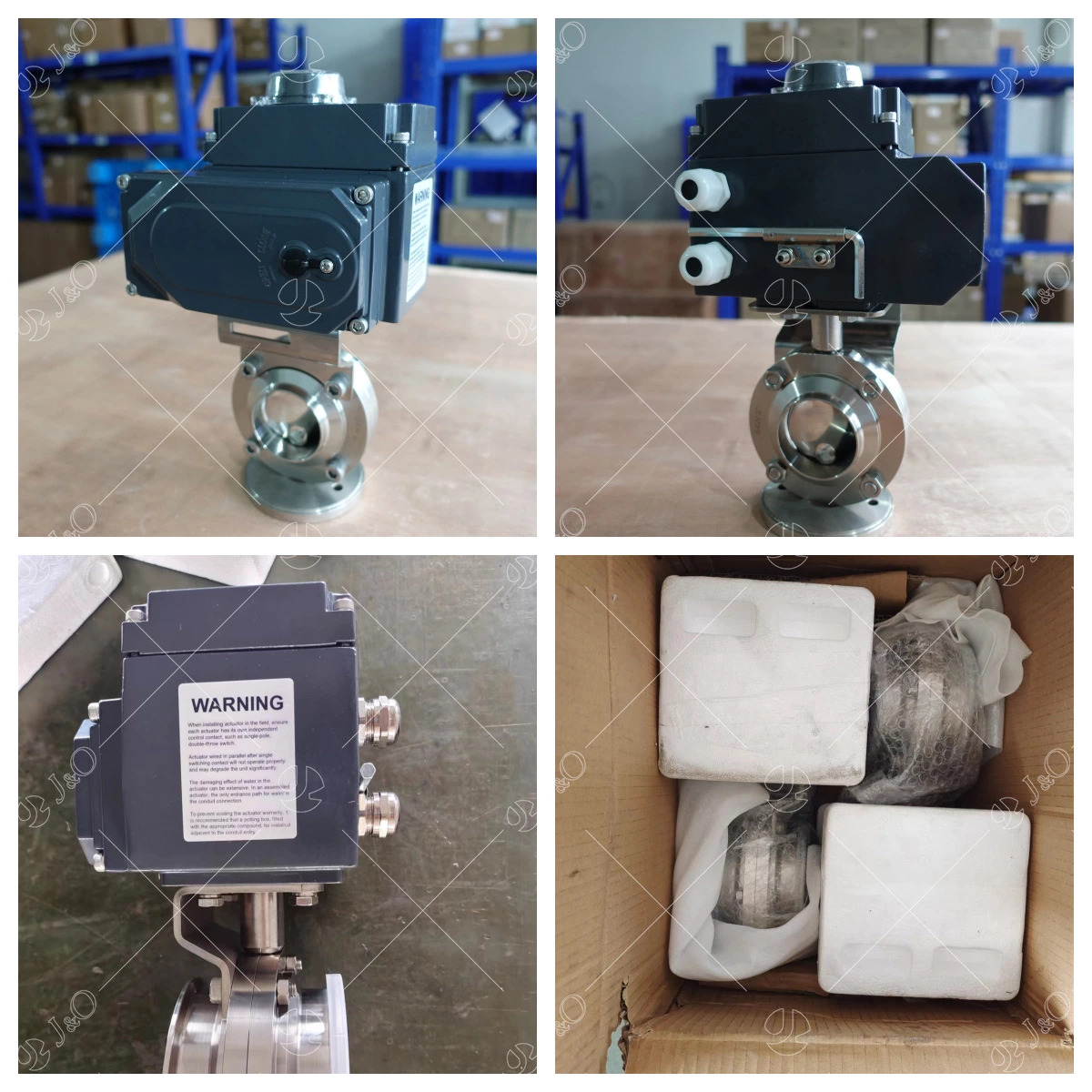

Product Pictures
Feedback
