Coolant Distribution Units CDU Hygienic Weld Butterfly Valve with Stainless Steel Multi-Positon Gripper Handle
- Place of Origin:
- Wenzhou China
- Packing:
- Suitable Packing For Sea/Air Transport
- Quantity:
- 1000000 PCS Per Year
- Payment:
- T/T, L/C, Paypal, Alipay
- Medium:
- Cooling Water
- Material:
- SS304/SS316L
- Connection:
- Welding
- Specification:
- DN25-DN250, 1"-10"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Gasket:
- EPDM/SILICON/NBR
Coolant Distribution Units CDU Hygienic Weld Butterfly Valve with Stainless Steel Multi-Positon Gripper Handle
- We can supply Coolant Distribution Units CDU Hygienic Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as Data Certer cooling, Energy storage cooling, Liquid Cooling, food, dairy, beverage, meat processing, chemical, and many other industries.
Product Description
| Product Name: | Coolant Distribution Units CDU Hygienic Weld Butterfly Valve with Stainless Steel Multi-Positon Gripper Handle |
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-10", DN25-DN150 |
| Availably connection: | Weld |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Handle application: | Stainless steel pull handle |
| Application scope: | Data Certer cooling, Energy storage cooling, Liquid Cooling,Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

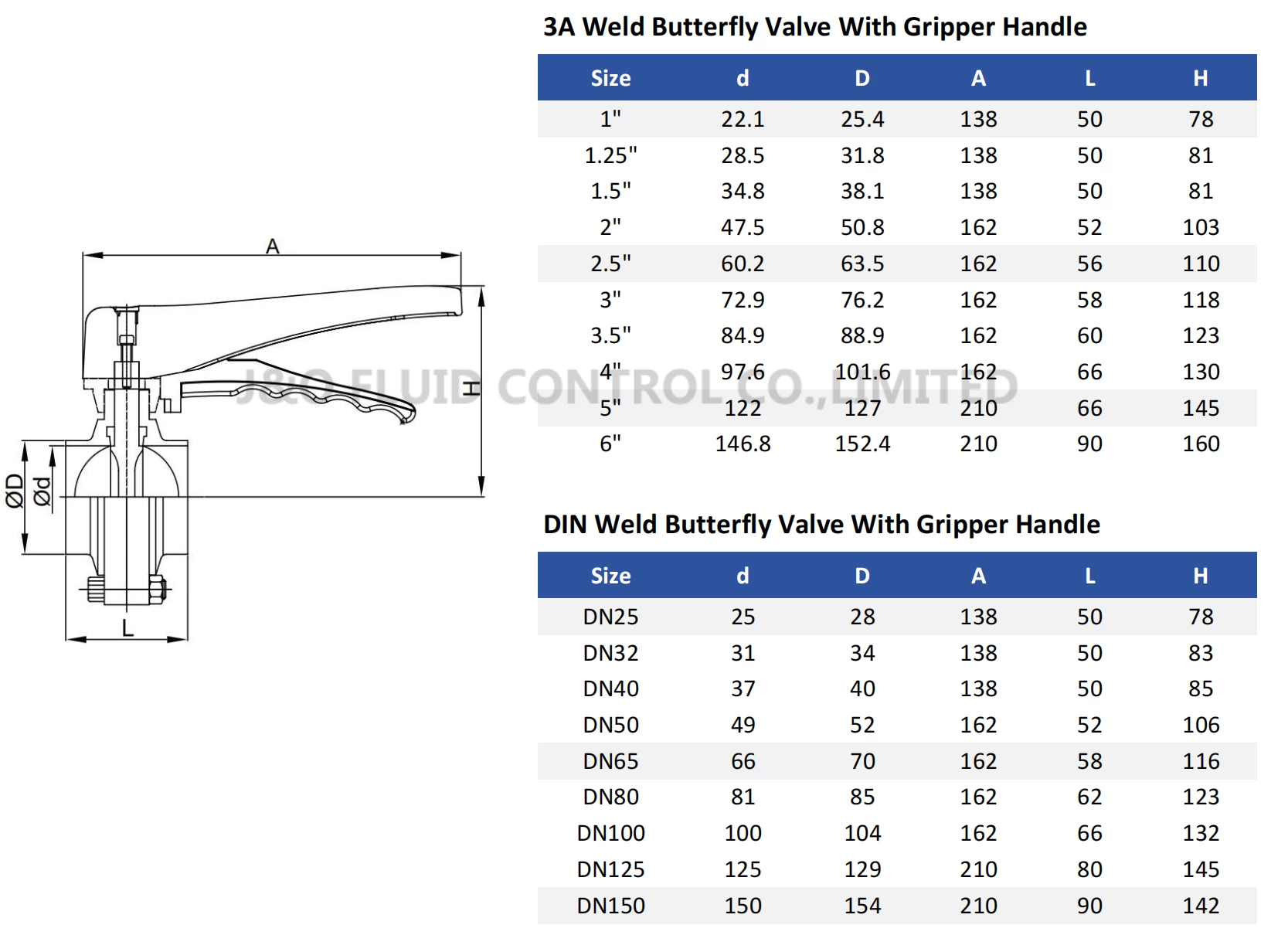

Product Parameter

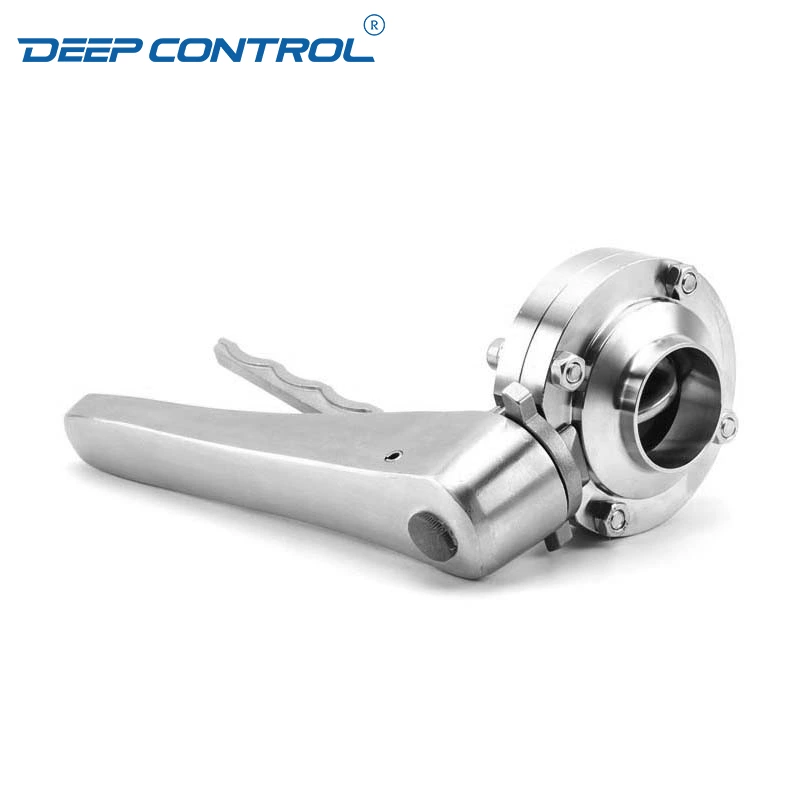

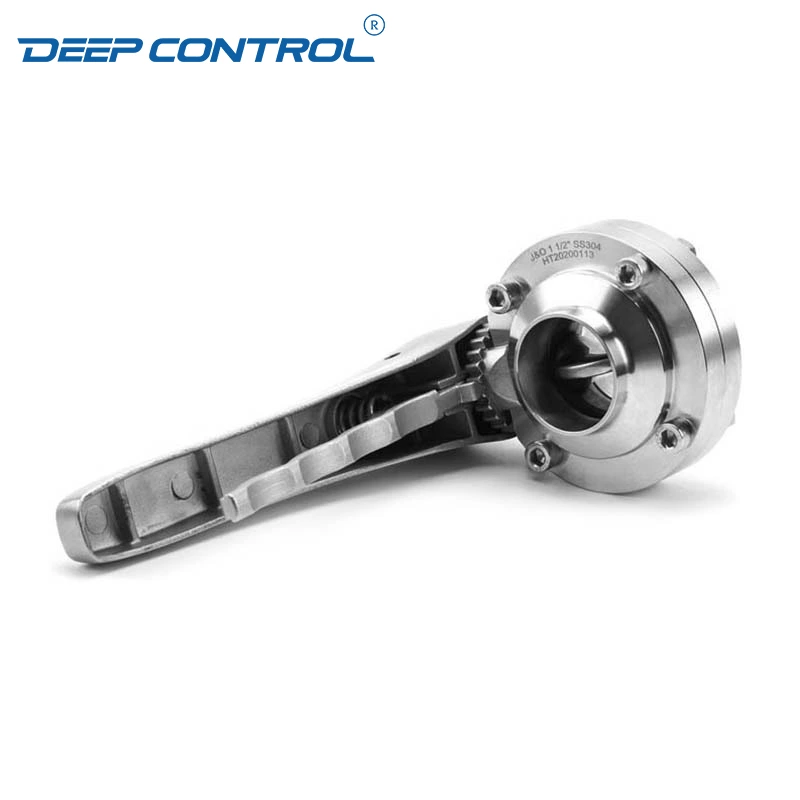

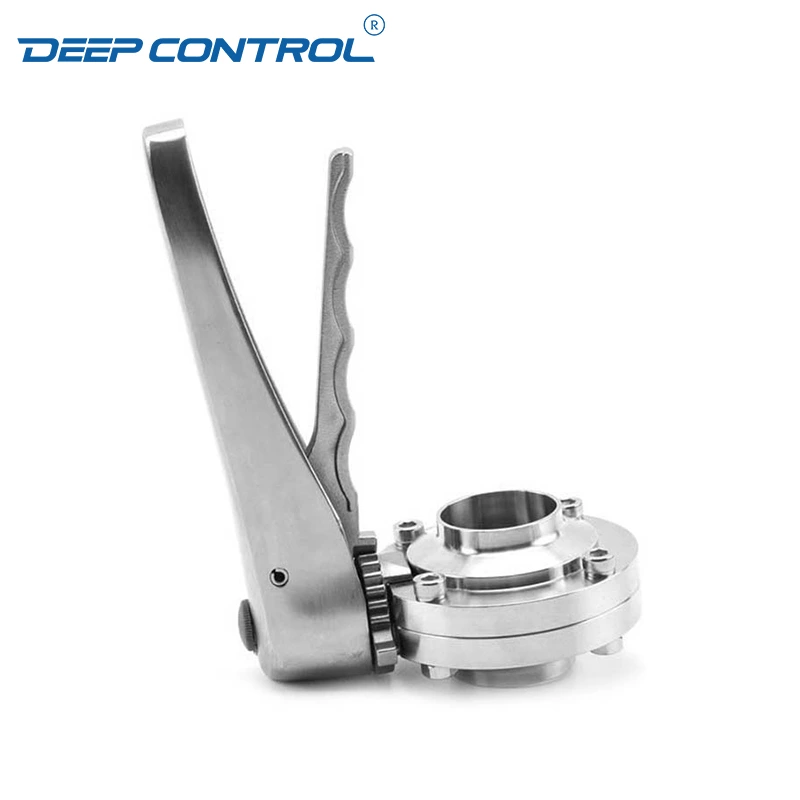

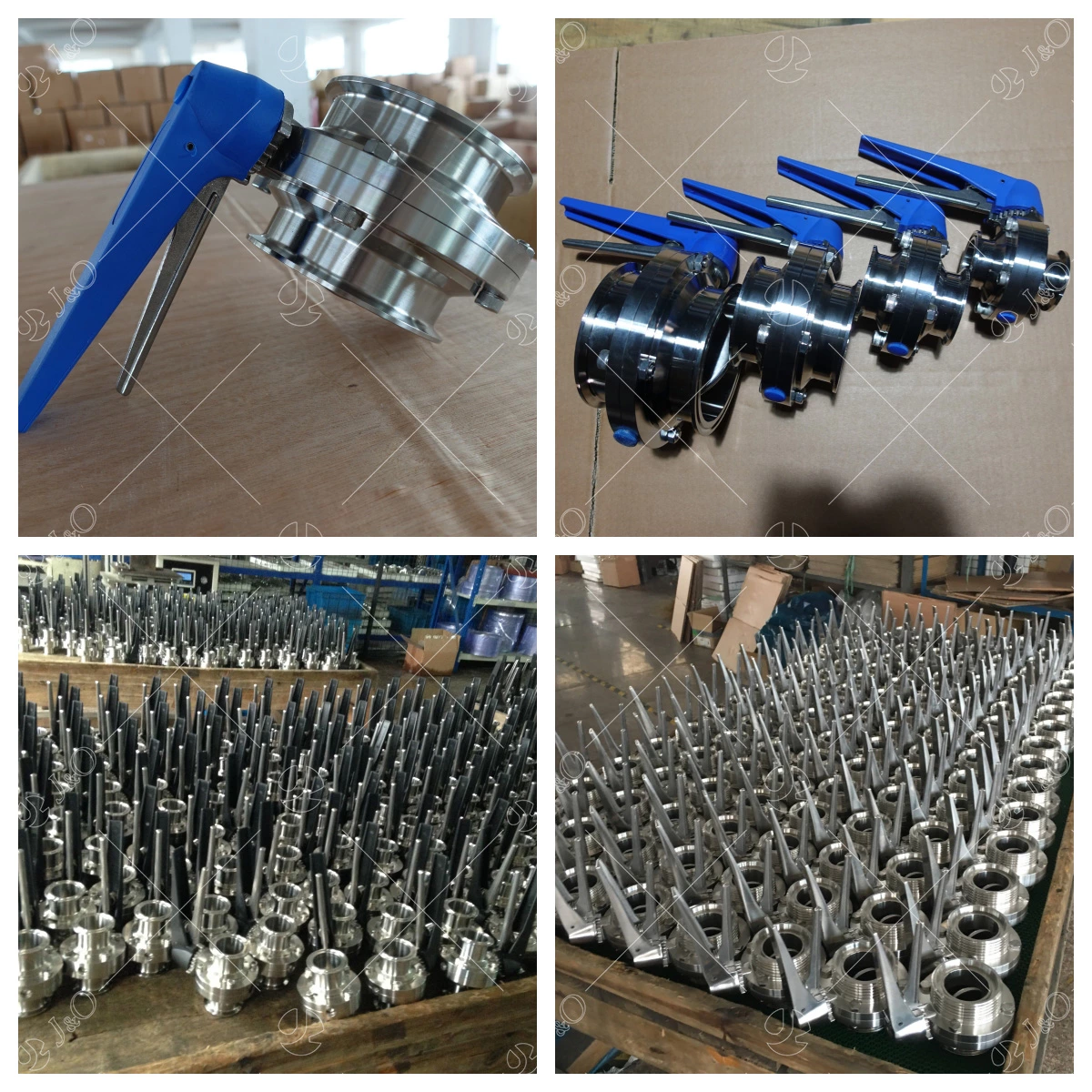

Product Pictures
