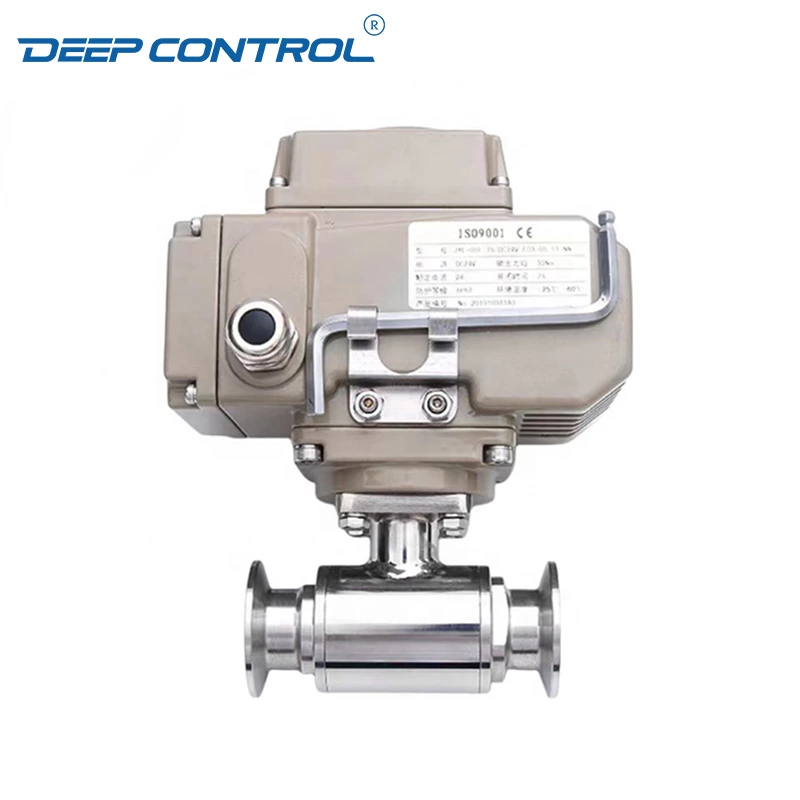

Water Cooling Liquid Data Center Stainless Steel Hygienic 2-way Tri-Clamp Ball Valve with Electric Actuator
Water Cooling Liquid Data Center Stainless Steel Hygienic 2-way Tri-Clamp Ball Valve with Electric Actuator
- Water Cooling Liquid Data Center Stainless Steel Hygienic Ball Valve including Sanitary Manual Direct Way Ball Valve, Hygienic Pneumatic Ball Valve, Sanitary Electric Actuator Ball Valve, Sanitary Butt-weld Ball Valve, Hygienic Male Ball Valve, Hygienic Tri-Clamp Ball Valve.
- Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Data Certer cooling, Energy Storage Cooling, Liquid Cooling, Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.
Product Description
| Size: | 1/2"-4", DN10-DN100 |
| Temperature: | -20C-120 C |
| Pressure: | 10 Bar |
| Material: | AISI304, AISI316L |
| Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
| Connection: | Clamp, Weld, Male, Flange, Standard With 3A, SMS, DIN, RJT, IDF. |
| Advantage: | Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators. |
| Certificate: | PED/97/23/EC |

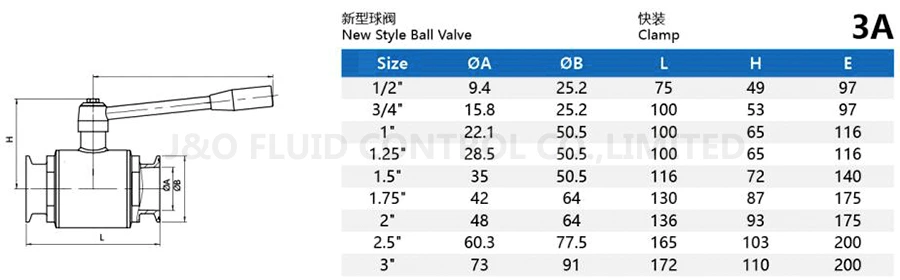

Product Parameter
