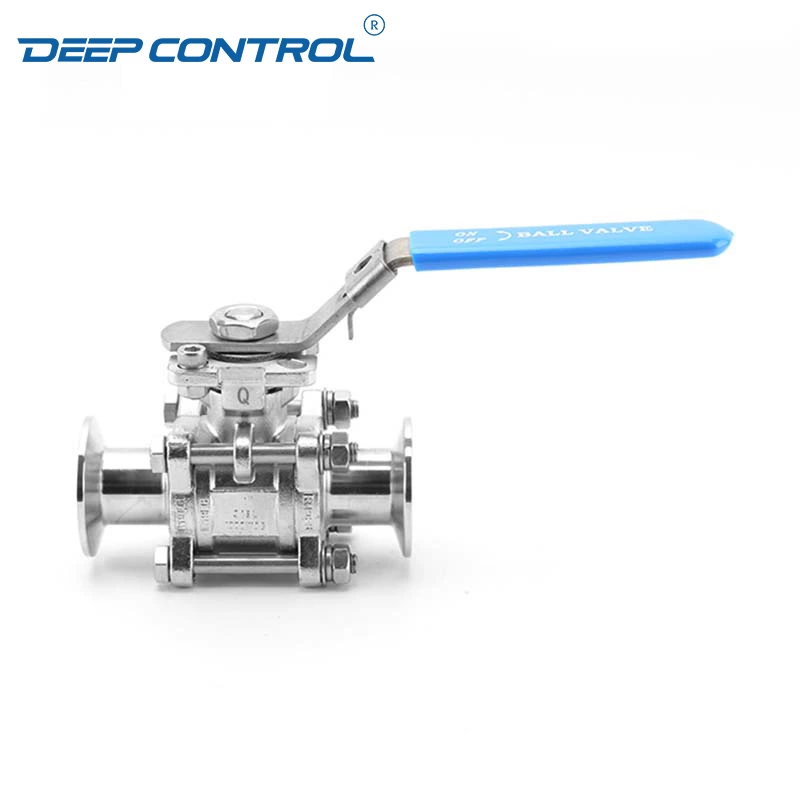

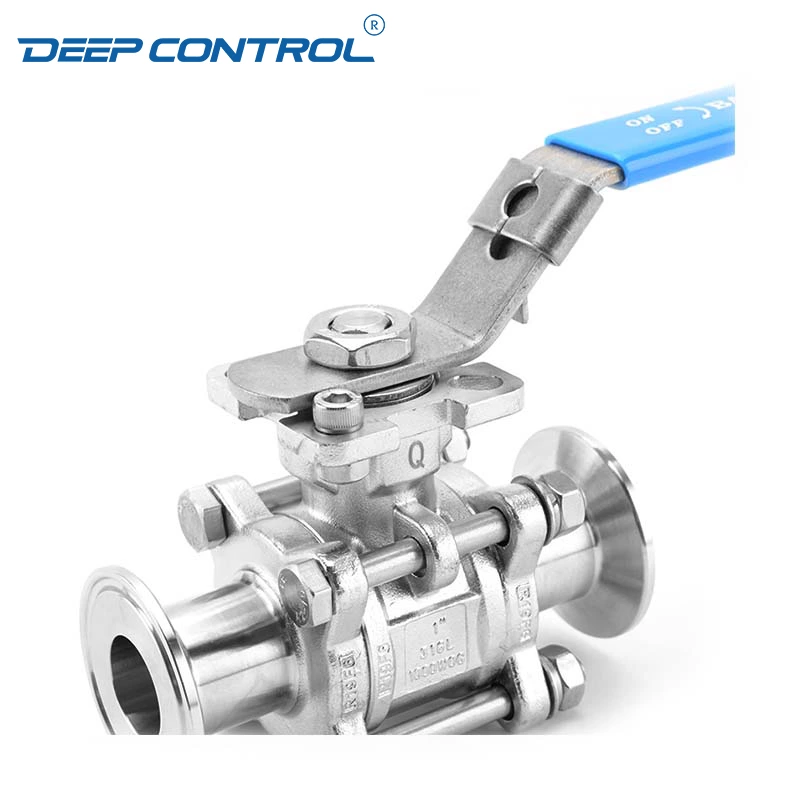

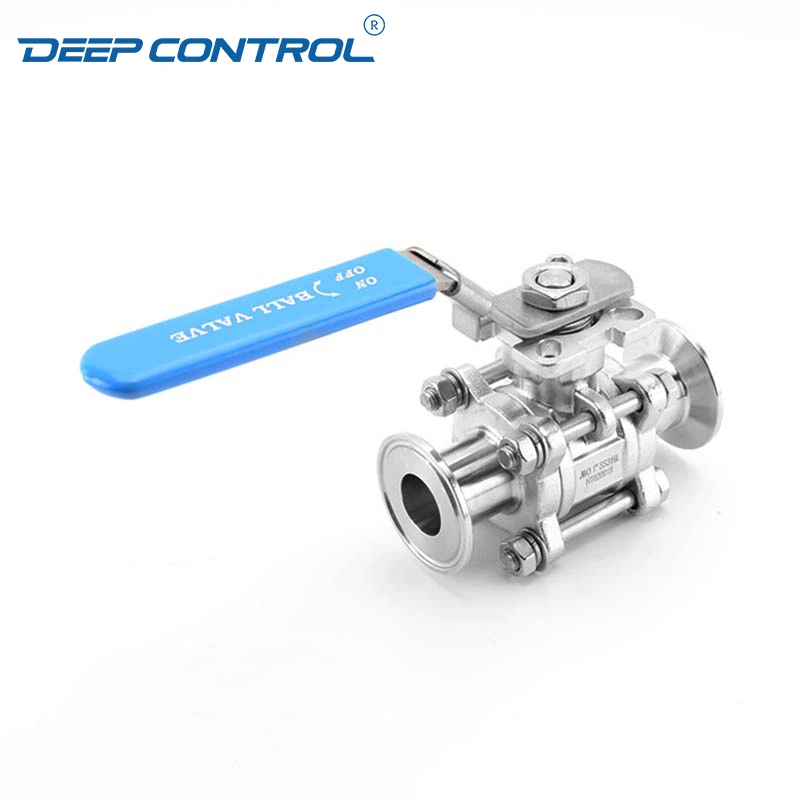

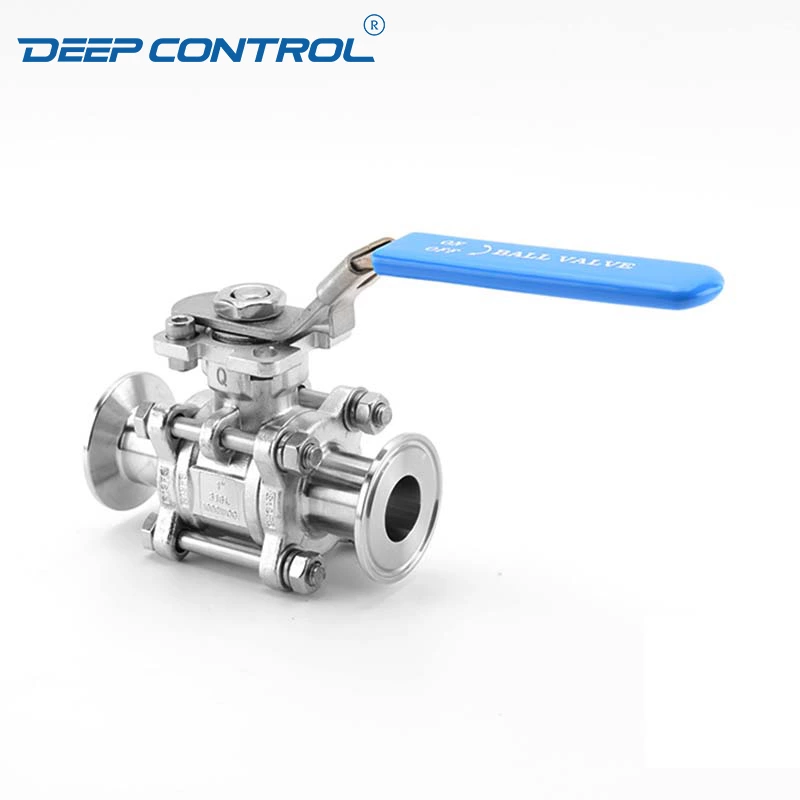

Liquid Cooling Water Energy Storage Sanitary 3PC Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 10000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304/SS316L
- Connection:
- Clamped
- Specification:
- 3/4"-4"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Gasket:
- PTFE
Liquid Cooling Water Energy Storage Sanitary 3PC Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve
-
J&O Liquid Cooling Water Energy Storage Sanitary 3 PCS Ball Valve including Sanitary Butt-weld Three Piece Ball Valve, Hygienic Male 3 Pieces Ball Valve, Hygienic Tri-Clamp 3 PC Ball Valve, Hygienic Pneumatic 3 PCS Ball Valve, Sanitary Electric Actuator 3 Pieces Ball Valve.
-
Sanitary 3-piece ball valve with ISO direct mounting pad is designed for food biological, pharmaceutics or similar industries. The cavity filled seat option will help not to remain the media in the body cavity to keep from spoiling or mixing. Cavity filler seats will also help to clean the valve port easily.
-
The options on end types can be T-Clamp, Tube weld end, Extended tube weld end. Different material of soft kits will be applicable for different working circumstance.
Product Description
|
Product Name:
|
Liquid Cooling Water Energy Storage Sanitary 3PC Tri-Clamp Hygienic Encapsulated Seal High Platform Ball Valve |
|
Valve Body Material:
|
SS304/SS316L
|
|
Seal Material:
|
PTFE
|
|
Mex working pressure:
|
10Bar
|
|
Max. Working Temperature:
|
180 degree C
|
|
Availably size:
|
1"-4", DN25-DN100
|
|
Availably connection:
|
Clamp, weld, thread
|
|
Availably standard:
|
3A/DIN/SMS/RJT/ISO/IDF
|
|
Operated:
|
Manual
|
|
Certificate:
|
ISO, PED/97/23/EC, FDA.177.2600
|
|
Application scope:
|
Data Certer cooling, Energy Storage Cooling, Liquid Cooling, Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
|
Product exploded view
Product Parameter
