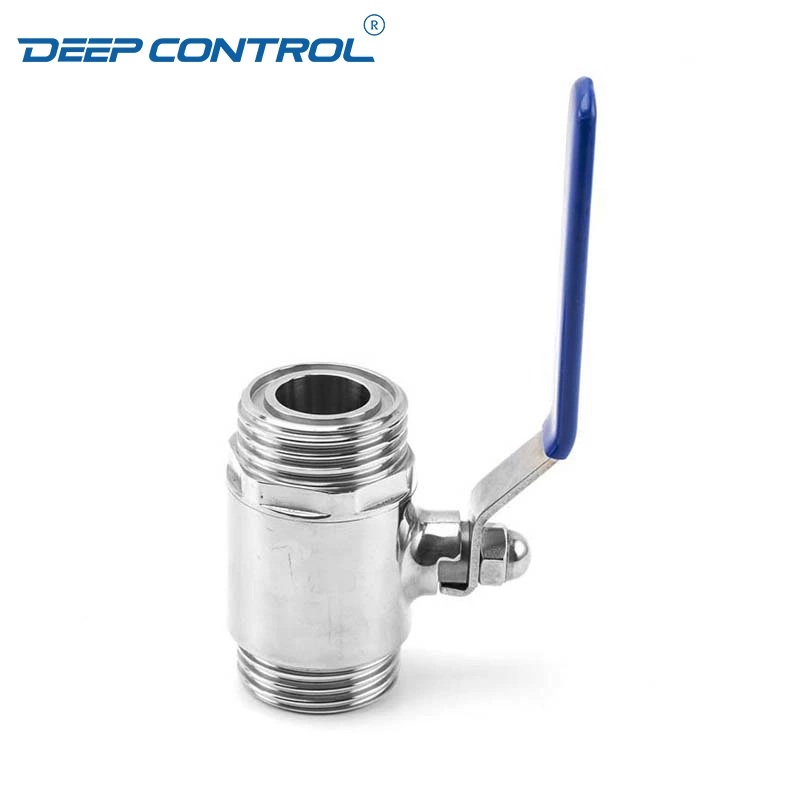

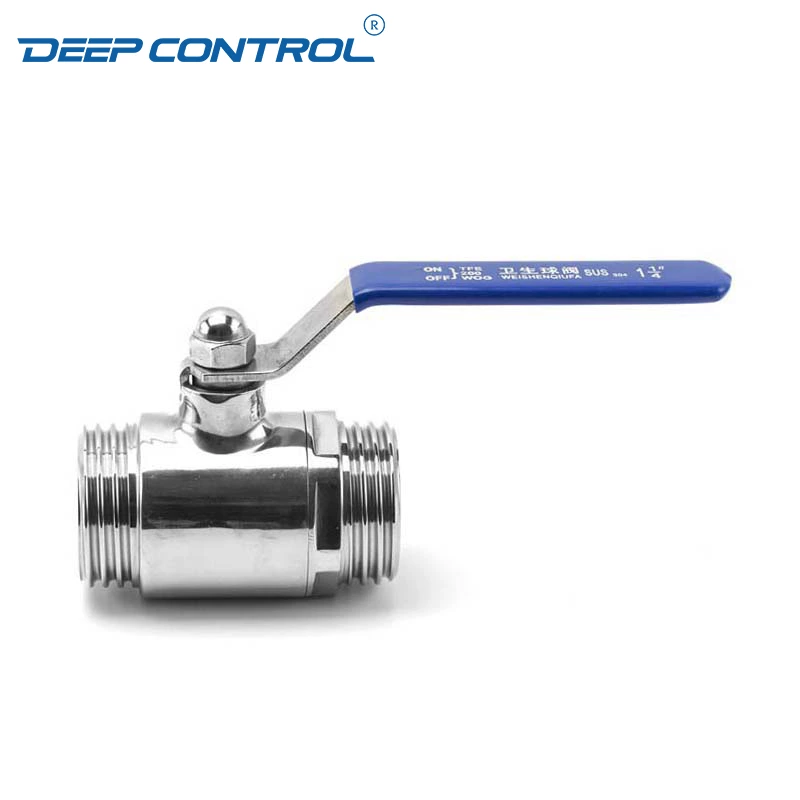

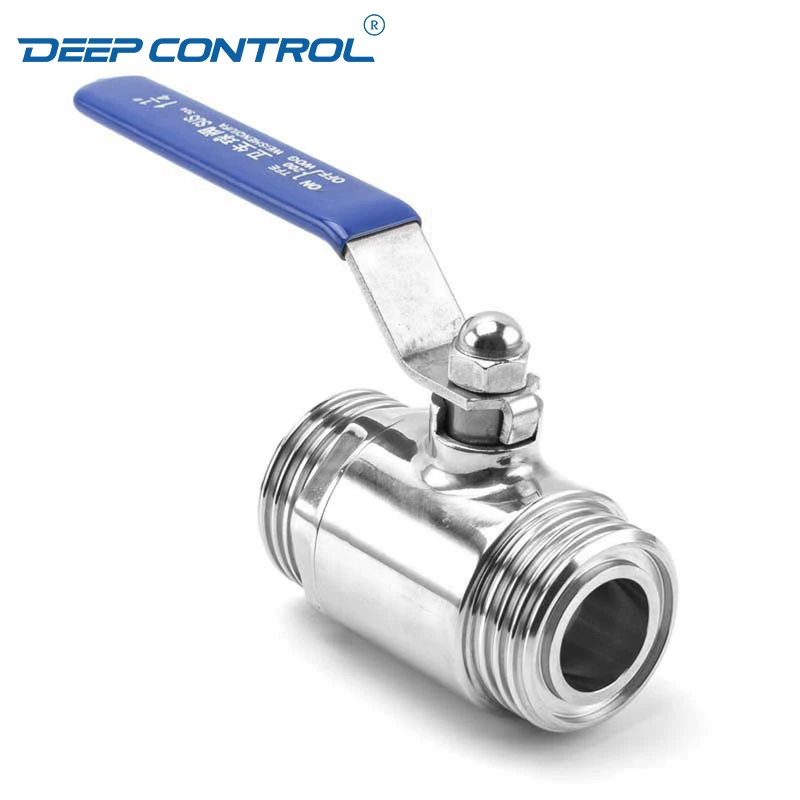

Hygienic Liquid Cooling Water Energy Storage Stainless Steel Food Male-Male Thread Ball Valve
- Place of Origin:
- Wenzhou, China
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 100000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Material:
- SS304/SS316L
- Connection:
- Thread
- Specification:
- 3/4"-4"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Gasket:
- PTFE
Hygienic Liquid Cooling Water Energy Storage Stainless Steel Food Male-Male Thread Ball Valve
- J&O Hygienic Liquid Cooling Water Energy Storage Ball Valve including Sanitary Butt-weld Ball Valve, Hygienic Male Ball Valve, Food Female Thread Ball Valve, Hygienic Tri-Clover Ball Valve, Hygienic Pneumatic Ball Valve, Sanitary Electric Actuator Ball Valve.
- Both Manual And Automatic Operated Hygienic 2-Way Ball Valve Are Mainly Used In Processing Beverage, Wine, Oil Refining, Cosmetics And Chemical Industries.
Product Description
| Size: | 1/2"-4", DN10-DN100 |
| Temperature: | -20ºC-120ºC |
| Pressure: | 10 Bar |
| Gaskets: | PTFE FDA 177. 1550 Whatever The Connection, It Does Not Change The Total Length Of The Valve |
| Material: | AISI304, AISI316L |
| Connection: | Male |
| Advantage: | Smaller And Lighter Than Other Type Ball Valve, Operating Torque Is Small, It Can Be Installed With Pneumatic Actuators And Electric Actuators. |
| Certificate: | PED/97/23/EC |

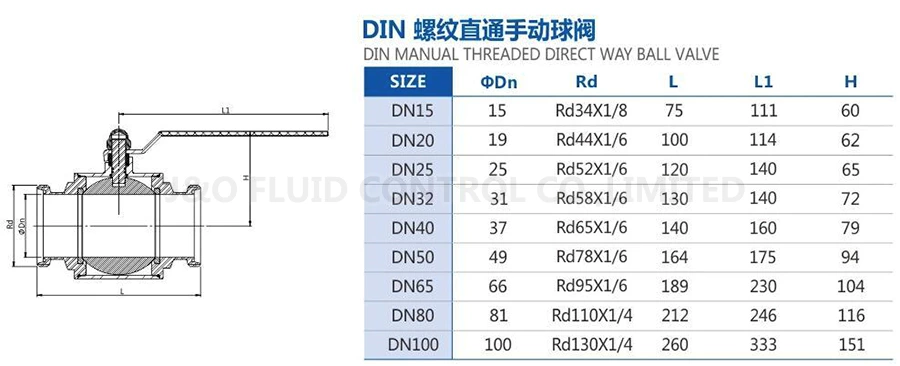

Product Parameter
