Cooling Water Data Center Sanitary Stainless Steel Encapsulated Electric Actuator Tri-Clamp 3-Way Ball Valve
Cooling Water Data Center Sanitary Stainless Steel Encapsulated Electric Actuator Tri-Clamp 3-Way Ball Valve
- J&O Cooling Water Data Center Sanitary Stainless Steel Ball Valve including Sanitary Butt-Weld Ball Valve, Sanitary Tri-Clamp Ball Valve, Hygienic Male Thread Ball Valve, Sanitary Pneumatic Ball Valve, Hygienic Electric Ball Valve. For Electrical Actuator, we have On/Off Type, Modulating Type and Intelligent Type.
- Both Manual and Automatic operated Hygienic 3-way ball valve are mainly used in processing beverage, wine, oil refining, cosmetics and chemical industries.
Product Description
| Size: | 1"-4", DN25-DN100 |
| Connection type: | Clamp, Weld, Thread |
| Material: | AISI304 Or AISI316L |
| Seal material: | PTFE: -30~150C |
| Pressure Range: | 1.6-6.4 Mpa |
| Medium Temp: | -20º C+180º C |
| Ambient Temp: | -20º C+60º C |
| Body Material: | SS304, SS316, SS316L |
| Sealing: | PTFE |
| Actuator Body: | Aluminium alloy |
| Control Pressure: | 24V AC, 110V AC, 220V AC, 380V AC, 24V DC |
| Type: | On-Off type, regulated type |
| Standard: | DIN, ISO, SMS, 3A, IDF |
| Applicable Medium: | Water, gas, oil, acid, alkali, etc. |

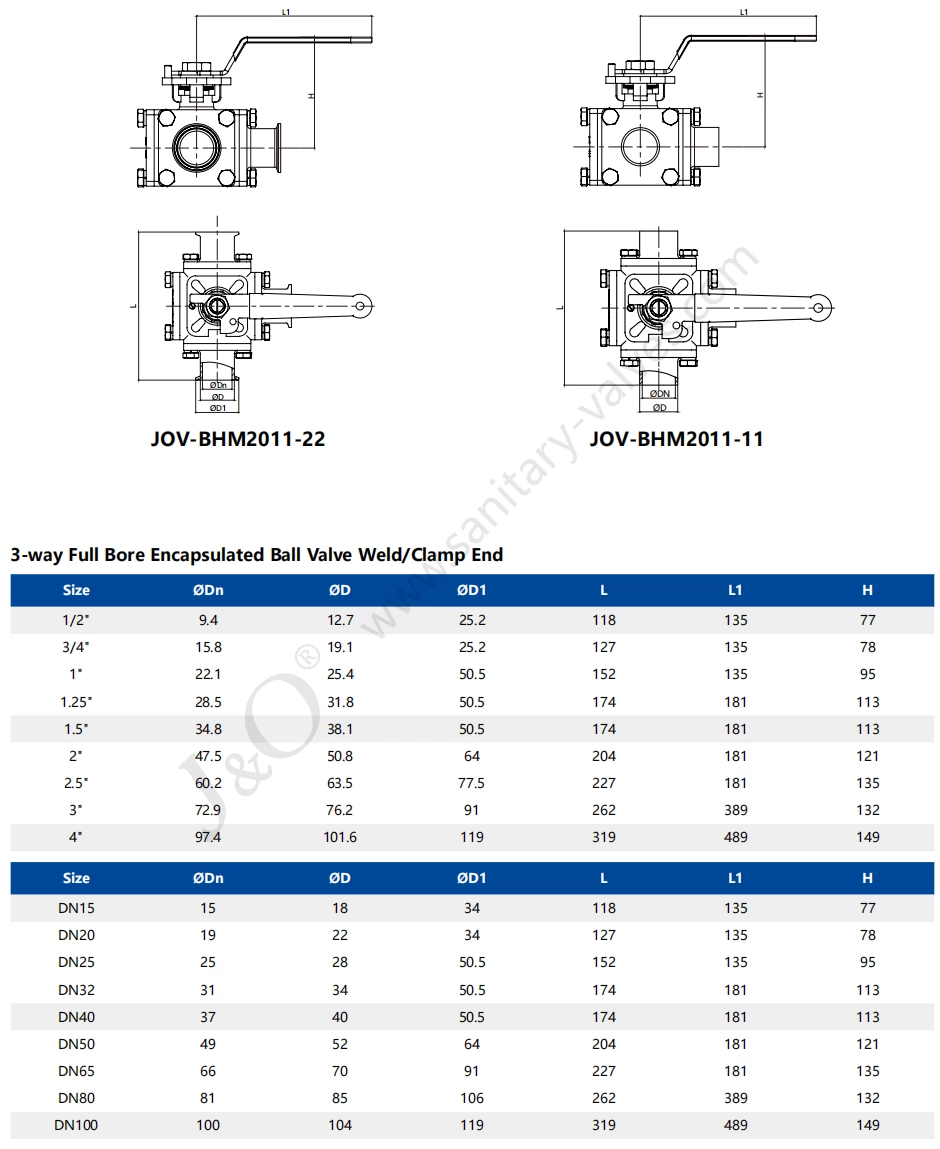

Product Parameter
